    Synthetic Sapphire Components Sapphire Optical Cylindrical Mirror Lens High Performance

    Ask Lasest Price
    Brand Name : zmkj
    Model Number : sapphire rod lens
    Price : by case
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    Synthetic Sapphire Components Sapphire Optical Cylindrical Mirror Lens High Performance


    sapphire Cylindrical mirror lens , Al2O3 sapphire single crystal glass rod lens ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods


    Abstract


    Synthetic sapphire components, such as sapphire optical cylindrical mirror lenses, are widely recognized for their high performance and exceptional durability. Due to sapphire’s superior hardness, thermal stability, and resistance to chemical corrosion, these lenses are ideal for demanding environments and applications that require precision and reliability. Sapphire optical cylindrical mirror lenses offer excellent transparency across a broad range of wavelengths, making them suitable for use in optical systems, laser technologies, and high-precision instruments. Their ability to maintain optical clarity and structural integrity under extreme conditions makes sapphire an outstanding material for high-performance optical components.


    What is sapphire?

    Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, and single crystal Al2O3,have 9.0 hardness.
    Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense.
    The combination of favourable chemical, electrical, mechanical,optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications,
    sapphire is the best choice in comparison with other synthetic single-crystals.

    Product nameindustrial sapphire wafer
    sapphire optical lens chemical formulaAL2O3
    Crystal structureHexagonal
    Hardness Mohs9H
    Compressvise strengthGpa 2.0
    Density(20)3.98g/cm
    Fusion point2040
    Boiling point2980
    Coefficient of Thermal Expansionα=5.8×10 -6 /K
    Specific heat0.418W.s/g/k
    Thermal conduction25.12W/m/k(@100°C)
    Optical transmission range0.17-5.5μm
    Transmission(0.3~5um)85-88%
    Refractive indexno=1.768nd
    ne=1.76nd
    dn/dt13×10-6/K(@633nm)
    Permittivity11.5(//c), 9.3(⊥c)


    Product nameindustrial sapphire wafer
    sapphire optical lens chemical formulaAL2O3
    Crystal structureHexagonal
    Hardness Mohs9H
    Compressvise strengthGpa 2.0
    Density(20)3.98g/cm
    Fusion point2040
    Boiling point2980
    Coefficient of Thermal Expansionα=5.8×10 -6 /K
    Specific heat0.418W.s/g/k
    Thermal conduction25.12W/m/k(@100°C)
    Optical transmission range0.17-5.5μm
    Transmission(0.3~5um)85-88%
    Refractive indexno=1.768nd
    ne=1.76nd
    dn/dt13×10-6/K(@633nm)
    Permittivity11.5(//c), 9.3(⊥c)



    How about advantage of sapphire glass?

    1- Thinner and Stronger than Standard Glass Windows
    2- Transmits Wavelengths Ranging From UV to Mid-Infrared
    3- Features Extreme Surface Hardness and Chemical Resistance
    -------------------------------------------------------------------------------------------------------------------

    What applications arethese products for ?
    LED OPtical element applications mobile camera cover glass
    mechanical parts watch and other consumer electronics military applications
    Fingerprint recognition allication SOS substrates Artificial jewelry


    How about advantage of sapphire glass?

    1- Thinner and Stronger than Standard Glass Windows
    2- Transmits Wavelengths Ranging From UV to Mid-Infrared
    3- Features Extreme Surface Hardness and Chemical Resistance
    -------------------------------------------------------------------------------------------------------------------

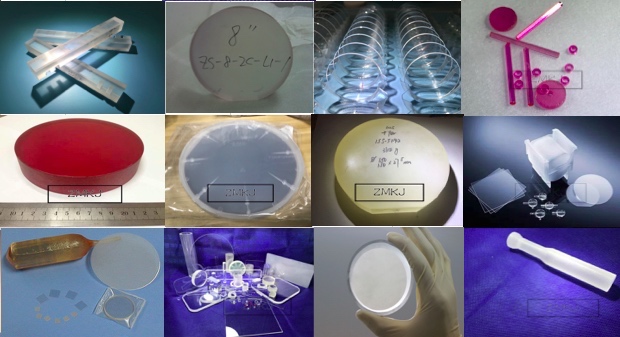

    Sapphire parts products in detail



    4. We also can supply professional customized service in time and provide
    cooperation and support of new product development and technology appliance
    in other semiconductor crystal material products

    FAQ

    Q:What is your minimum order requirement?
    A:MOQ:3 piece

    Q:How long will it take to execute my order and delivery it ?
    A:confirm the order 1days After confirming the payment and delivery in 5days if on stocks.

    Q:Can you give warranty of your products ?
    A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.

    Q:How to pay?
    A:T/T, Paypal, West Union, bank transfer.

    Q:HOW about the freight ?
    A:we can help you pay for the fee if you don’t have account,
    if the order is over 10000usd, we can delivery by CIF.
    Q:If you have any other questions,please do not hesitate to contact me.
    A : connect with by skype/whatsapp :+86 158 0194 2596 or 2285873532@qq.com

    we are at your side any time~~
