Abstract
The Ruby Rod is a cylindrical component crafted from synthetic
ruby (Cr:Al₂O₃), a chromium-doped aluminum oxide crystal. Renowned
for its exceptional hardness (Mohs scale 9), high melting point
(2050°C), and superior optical properties, it is widely utilized in
industrial, scientific, and medical fields. Synthetic ruby is
produced via methods like the Verneuil (flame fusion) or
Czochralski processes, ensuring controlled purity and uniformity
for specialized applications.
Historically, ruby rods gained prominence in 1960 as the core
medium for the first laser, and today, they remain critical in
precision engineering and advanced research.
Company Introduction
Our company, ZMSH, has been a prominent player in the semiconductor
industry for over a decade, boasting a professional team of factory experts and sales
personnel. We specialize in providing customized sapphire wafer
solutions, offering both tailored designs and OEM services to meet diverse
client needs. At ZMSH, we are committed to delivering products that excel in
both price and quality, ensuring customer satisfaction at every
stage. We invite you to contact us for more information or to
discuss your specific requirements.
Ruby Rod Tecnical Parameters
| Parameter | Value/Description |
|---|
| Hardness | Mohs 9 (second only to diamond) |
| Melting Point | 2050°C |
| Refractive Index | 1.76–1.78 |
| Fluorescence | 694.3 nm (R1 line under UV excitation) |
| Transparency Range | 250–5500 nm (UV to near-infrared) |
| Typical Dimensions | Diameter: 0.5–2 cm; Length: 4–16 cm |
Laser Performance:
- Pulse energy: >10 J
- Peak power: >10 kW
- Efficiency: ~0.1% (lower than YAG lasers but offers stability)
Ruby Rod Applications
Laser Technology
- Medical: Used in dermatology for tattoo removal, vascular lesion
treatment, and ophthalmology for retinal procedures.
- Industrial: Enables precision cutting, welding, and micro-drilling in
aerospace and electronics manufacturing.
Industrial Components
- Bearings & Seals: High wear resistance makes it ideal for luxury watch mechanisms.
- Guiding Tools: Ruby nozzles and wire guides in automated winding machines ensure
minimal friction and damage to fine wires.
High-Pressure Research
Acts as a fluorescence pressure marker in diamond anvil cell (DAC)
experiments, measuring pressures exceeding 100 GPa via R1 peak
shifts.
Emerging Fields
- Quantum Computing: Ruby rods serve as quantum bit carriers at cryogenic
temperatures.
- Biotechnology: The RUBY system in genetic engineering visualizes gene expression
without chemical markers.

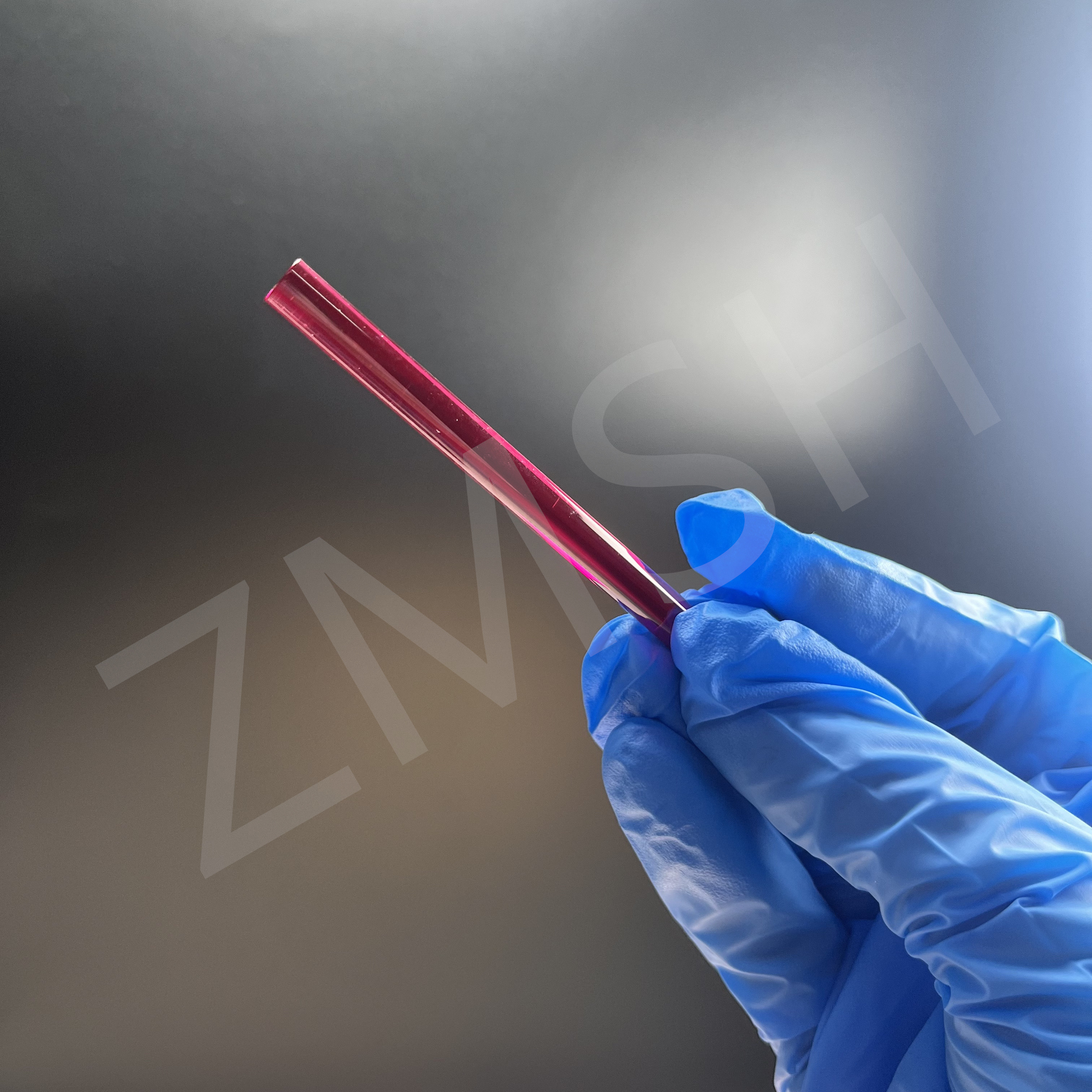

Product Display - ZMSH
Ruby Rod FAQ
Q: Why is chromium added to ruby rods?
A: Chromium ions (Cr³⁺) create a three-level energy system, enabling
laser emission at 694.3 nm and fluorescence-based pressure sensing
Q: How durable are ruby rods?
A: With high chemical stability, they last decades in industrial
settings, though prolonged exposure to >50°C may reduce
fluorescence efficiency.
Q: How does synthetic ruby differ from natural ruby?
A: Synthetic variants offer controlled purity and lower costs, while
natural rubies (e.g., Myanmar Mogok) are rare and prized for
collectible value.
