Abstract
Sapphire
crystal (Al₂O₃), renowned as the "second hardest natural material" after
diamond (Mohs hardness 9), combines exceptional physical, chemical,
and optical properties. Our state-of-the-art CVD (Chemical Vapor
Deposition) and Pull-Up Growth technologies produce ultra-pure,
defect-free crystals with diameters ranging from 5mm to 300mm,
catering to cutting-edge industries including semiconductors,
consumer electronics, optics, and industrial manufacturing.
Key Advantages:
- Unmatched Hardness: 300% higher scratch resistance vs. glass.
- Extreme Temperature Tolerance: Operates stably up to 1800°C
(melting point: 2050°C).
- Superior Optical Performance: >90% transmission rate with
minimal refractive index variation.
- Chemical Resilience: Against acids, alkalis, and harsh
environments.
- Eco-Friendly: RoHS/REACH compliant and non-radioactive.
Global Market Share:
- Consumer Electronics: 90%+ of smartphone displays and camera
modules.
- Semiconductors: Wafer substrates and advanced packaging solutions.
- Optics & Lasers: High-power laser windows and IR detectors.
- Industrial Applications: Precision cutting tools and
wear-resistant coatings.
Company Introduction
Our company, ZMSH, has been a prominent player in the semiconductor
industry for over a decade, boasting a professional team of factory experts and sales
personnel. We specialize in providing customized sapphire wafer
solutions, offering both tailored designs and OEM services to meet diverse
client needs. At ZMSH, we are committed to delivering products that excel in
both price and quality, ensuring customer satisfaction at every
stage. We invite you to contact us for more information or to
discuss your specific requirements.
| Parameter | Value/Characteristic | Industry Standard |
|---|
| Crystal Purity | ≥99.999% (MOCVD Grade) | SEMI Grade |
| Density | 3.98 g/cm³ | ASTM E1250 |
| Refractive Index | 1.76-1.78 (@630nm) | ISO 10110 |
| Thermal Conductivity | 140-230 W/(m·K) @25°C | ASTM C518 |
| Bending Strength | ≥2000 MPa | ISO 4545 |
| Growth Method | CVD/Pull-Up | Customized Technology |
| Surface Roughness | Ra ≤0.1μm (Polished) | JEDEC JESD22-A118 |
| Customization | Ø5mm–300mm (Precision Cutting) | ISO 10791-3 |
Sapphire Crystal Applications
A. Consumer Electronics
- Smartphone Displays: Scratch-resistant, anti-fingerprint surfaces with 92% light
transmission for slim, full-screen designs.
- Camera Modules: Protects lenses from scratches, enhancing image clarity for 4K/8K
cameras.
- Flexible Displays: Ideal for foldable and curved screens due to superior bend
resistance.
B. Semiconductor Manufacturing
- Wafer Carriers: Ensures signal integrity in high-frequency/temperature
environments.
- Chip Packaging: Enhances thermal management, extending device lifespan by 20%.
- Photomasks: Reduces nanoscale defects for advanced lithography processes.
C. Optics & Photonics
- Laser Windows: Withstands pulsed laser damage (up to 10⁶ J/cm²).
- Infrared Detectors: Low absorption loss in 3–25μm wavelength range.
- Fiber Optic Couplers: Minimizes signal attenuation with precise refractive index
matching.
D. Industrial & Aerospace
- Cutting Tools: Ideal for machining ceramics and hard steels (5x faster tool life
vs. conventional tools).
- Wear-Resistant Coatings: Reduces friction in mechanical arms and bearings by 40%.
- Nuclear Reactor Components: Radiation-resistant for extreme environments.

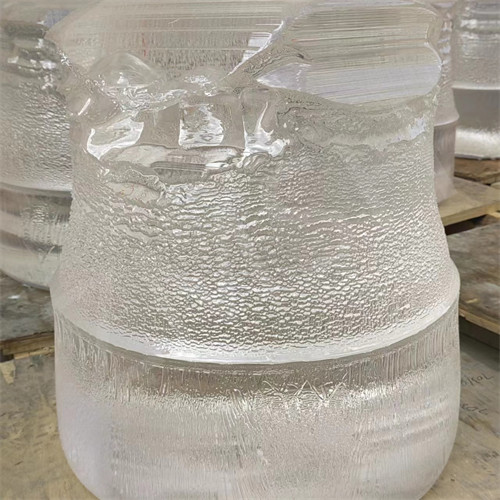

Product Display - ZMSH
Sapphire Crystal FAQ
Q: How does sapphire crystal compare to glass or quartz?
A: Hardness: Sapphire (9) vs. Glass (5-6) → 10x better scratch
resistance.
Temperature Stability: Sapphire withstands 2050°C vs. glass
(≈800°C).
Optics: Sapphire’s single-crystal structure eliminates
birefringence for uniform light transmission.
Q: Is sapphire crystal cost-effective for mass production?
A: Efficient Manufacturing: Vertical integration reduces energy costs
by 30%.
Customization: Optimized cutting reduces material waste by up to
25%.
