Product Overview

The equipment combines ultra-fast picosecond laser technology with intelligent control systems, designed for high-value material precision processing. Key advantages include:

• ​Picosecond-level Ultra-fast Processing: 1064nm wavelength pulsed laser with energy levels adjustable from 0.1mJ to 5mJ (step size 0.1mJ), delivering pulse durations <10^-12 seconds. This minimizes thermal damage (<10μm heat-affected zone) and eliminates micro-cracking.
• ​Full Digital Closed-loop Control: Equipped with industrial-grade PCs and proprietary ​LaserMaster Pro​ software, supporting G-code programming, CAD auto-conversion, and real-time path optimization. Positioning accuracy reaches ±0.005mm.
• ​4-Axis Intelligent System: XYZ axes with ±0.002mm repeatability and optional C-axis rotation enable complex multi-tasking for irregular hole patterns.

Typical Applications:

• Semiconductor industry: Wafer drilling, micro-structure fabrication
• Ultra-hard materials: Diamond tooling,apphire optical component micro-drilling
• Biomedical field: Artificial joints, dental implants precision drilling
• New energy sector: Lithium-ion battery micro-porous array processing

Technical Specifications

​ ​​​

​

Processing Performance & Quality Assurance

1. Exceptional Processing Capabilities​

• ​Micro-drilling: Minimum aperture φ0.5μm, depth-to-diameter ratio up to 1:50 (no chipping in hard materials)
• ​Complex Structures: Supports conical holes (0.1°–5° adjustable), spiral grooves, and multi-stage holes in one process
• ​Non-destructive Cutting: Ideal for thin films (e.g., PI film, graphene) with sub-micron precision

​2. End-to-End Quality Management​

• ​Smart Compensation: Real-time monitoring of laser power fluctuations and thermal deformation with dynamic parameter adjustments
• ​Process Database: Pre-built parameters for over 200 materials (metals, ceramics, gemstones, composites)
• ​In-line Inspection: Automated generation of hole size distribution maps and surface roughness analysis reports (Ra ≤0.8μm)

3. Material Compatibility Test Results​

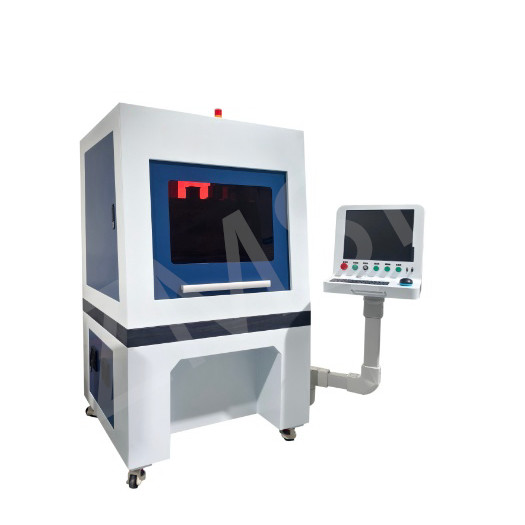

ZMSH Pico-precision Laser Drilling Machine

FAQs

Q: Is the equipment commissioning time-consuming?

A: Pre-installed parameter packages enable 30-minute basic functional verification. Remote guidance by our team can further reduce setup time to ​2 hours.

​Q: How to handle multi-material sequential cutting?

A: Supports multi-layer processing modes with automatic tool change and parameter switching between materials like stainless steel and ceramics.

​Q: What is the energy consumption?

A: Energy-efficient design (40% lower than conventional systems) with smart standby mode. Hourly operating cost ​<¥5.
