    350um Thickness 4h-N 4H-SEMI SIC Silicon Carbide Wafer For Epitaxial

    Ask Lasest Price
    Brand Name : ZMKJ
    Model Number : 4inch sic wafers
    Price : by case
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1-50pcs/month
    Delivery Time : 1-6weeks
    • Product Details
    • Company Profile

    350um Thickness 4h-N 4H-SEMI SIC Silicon Carbide Wafer For Epitaxial


    Customzied size/2inch/3inch/4inch/6inch 6H-N/4H-SEMI/ 4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single

    sic wafer 4Inch prime research dummy Grade 4H-N/SEMI standard size


    About Silicon Carbide (SiC)Crystal

    Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.


    1. Description
    Property4H-SiC, Single Crystal6H-SiC, Single Crystal
    Lattice Parametersa=3.076 Å c=10.053 Åa=3.073 Å c=15.117 Å
    Stacking SequenceABCBABCACB
    Mohs Hardness≈9.2≈9.2
    Density3.21 g/cm33.21 g/cm3
    Therm. Expansion Coefficient4-5×10-6/K4-5×10-6/K
    Refraction Index @750nm

    no = 2.61
    ne = 2.66

    no = 2.60
    ne = 2.65

    Dielectric Constantc~9.66c~9.66
    Thermal Conductivity (N-type, 0.02 ohm.cm)

    a~4.2 W/cm·K@298K
    c~3.7 W/cm·K@298K

    Thermal Conductivity (Semi-insulating)

    a~4.9 W/cm·K@298K
    c~3.9 W/cm·K@298K

    a~4.6 W/cm·K@298K
    c~3.2 W/cm·K@298K

    Band-gap3.23 eV3.02 eV
    Break-Down Electrical Field3-5×106V/cm3-5×106V/cm
    Saturation Drift Velocity2.0×105m/s2.0×105m/s

    4 inch n-doped 4H Silicon Carbide SiC Wafer

    4H-N 4inch diameter Silicon Carbide (SiC) Substrate Specification

    2inch diameter Silicon Carbide (SiC) Substrate Specification
    GradeZero MPD GradeProduction GradeResearch GradeDummy Grade
    Diameter100. mm±0.5mm
    Thickness350 μm±25μm or 500±25um Or other customized thickness
    Wafer OrientationOff axis : 4.0° toward <1120> ±0.5° for 4H-N/4H-SI On axis : <0001>±0.5° for 6H-N/6H-SI/4H-N/4H-SI
    Micropipe Density≤0 cm-2≤1cm-2≤5cm-2≤10 cm-2
    Resistivity4H-N0.015~0.028 Ω•cm
    6H-N0.02~0.1 Ω•cm
    4/6H-SI≥1E5 Ω·cm
    Primary Flat{10-10}±5.0°
    Primary Flat Length18.5 mm±2.0 mm
    Secondary Flat Length10.0mm±2.0 mm
    Secondary Flat OrientationSilicon face up: 90° CW. from Prime flat ±5.0°
    Edge exclusion1 mm
    TTV/Bow /Warp≤10μm /≤10μm /≤15μm
    RoughnessPolish Ra≤1 nm
    CMP Ra≤0.5 nm
    Cracks by high intensity lightNone1 allowed, ≤2 mmCumulative length ≤ 10mm, single length≤2mm
    Hex Plates by high intensity lightCumulative area ≤1%Cumulative area ≤1%Cumulative area ≤3%
    Polytype Areas by high intensity lightNoneCumulative area ≤2%Cumulative area ≤5%
    Scratches by high intensity light3 scratches to 1×wafer diameter cumulative length5 scratches to 1×wafer diameter cumulative length5 scratches to 1×wafer diameter cumulative length
    edge chipNone3 allowed, ≤0.5 mm each5 allowed, ≤1 mm each

    Production display show

    CATALOGUE COMMON SIZE In OUR INVENTORY LIST

    4H-N Type / High Purity SiC wafer/ingots
    2 inch 4H N-Type SiC wafer/ingots
    3 inch 4H N-Type SiC wafer
    4 inch 4H N-Type SiC wafer/ingots
    6 inch 4H N-Type SiC wafer/ingots

    4H Semi-insulating / High Purity SiC wafer

    2 inch 4H Semi-insulating SiC wafer
    3 inch 4H Semi-insulating SiC wafer
    4 inch 4H Semi-insulating SiC wafer
    6 inch 4H Semi-insulating SiC wafer
    6H N-Type SiC wafer
    2 inch 6H N-Type SiC wafer/ingot
    Customzied size for 2-6inch

    SiC Applications

    Application areas

    • 1 high frequency and high power electronic devices Schottky diodes, JFET, BJT, PiN,
    • diodes, IGBT, MOSFET
    • 2 optoelectronic devices: mainly used in GaN/SiC blue LED substrate material (GaN/SiC) LED

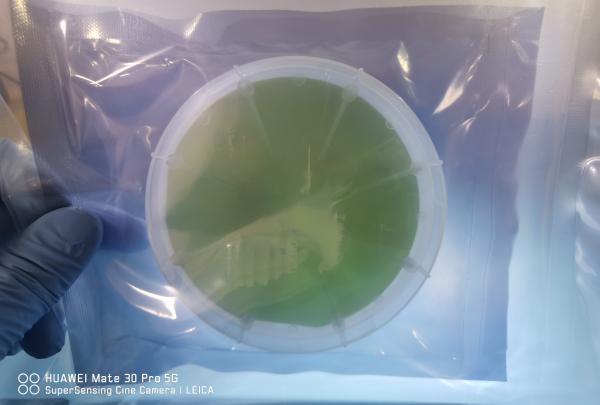

    >Packaging – Logistcs
    we concerns each details of the package , cleaning, anti-static , shock treatment .

    According to the quantity and shape of the product , we will take a different packaging process! Almost by single wafer cassettes or 25pcs cassette in 100 grade cleaning room.

    FAQ
    Q1. Are you a factory?
    A1. Yes, we are a professional manufacturer of optical components, we have more than 8years experience in wafers and optical lens process.
    Q2. What is the MOQ of your products?
    A2. No MOQ for customer if our product is in stock, or 1-10pcs.
    Q3:Can I custom the products based on my requirement?
    A3.Yes, we can custom the material, specifications and optical coating for youroptical components as your requirement.
    Q4. How can I get sample from you?
    A4. Just send us your requirements, then we will sendsamples accordingly.
    Q5. How many days will samples be finished? How about mass products?
    A5. Generally, we need 1~2weeks to finish the sample production. As for the mass products, it depends on your order quantity.
    Q6. What's the delivery time?
    A6. (1)For inventory: the delivery time is 1-3 working days. (2) For customized products: the delivery time is 7 to 25 working days.
    According to the quantity.
    Q7. How do you control the quality?
    A7. More than four times quality inspect during production process,we can provide the Quality test report.
    Q8. How about your optical lens production ability per Month?
    A8. About 1,000pcs/Month.According to the detail requirement.
