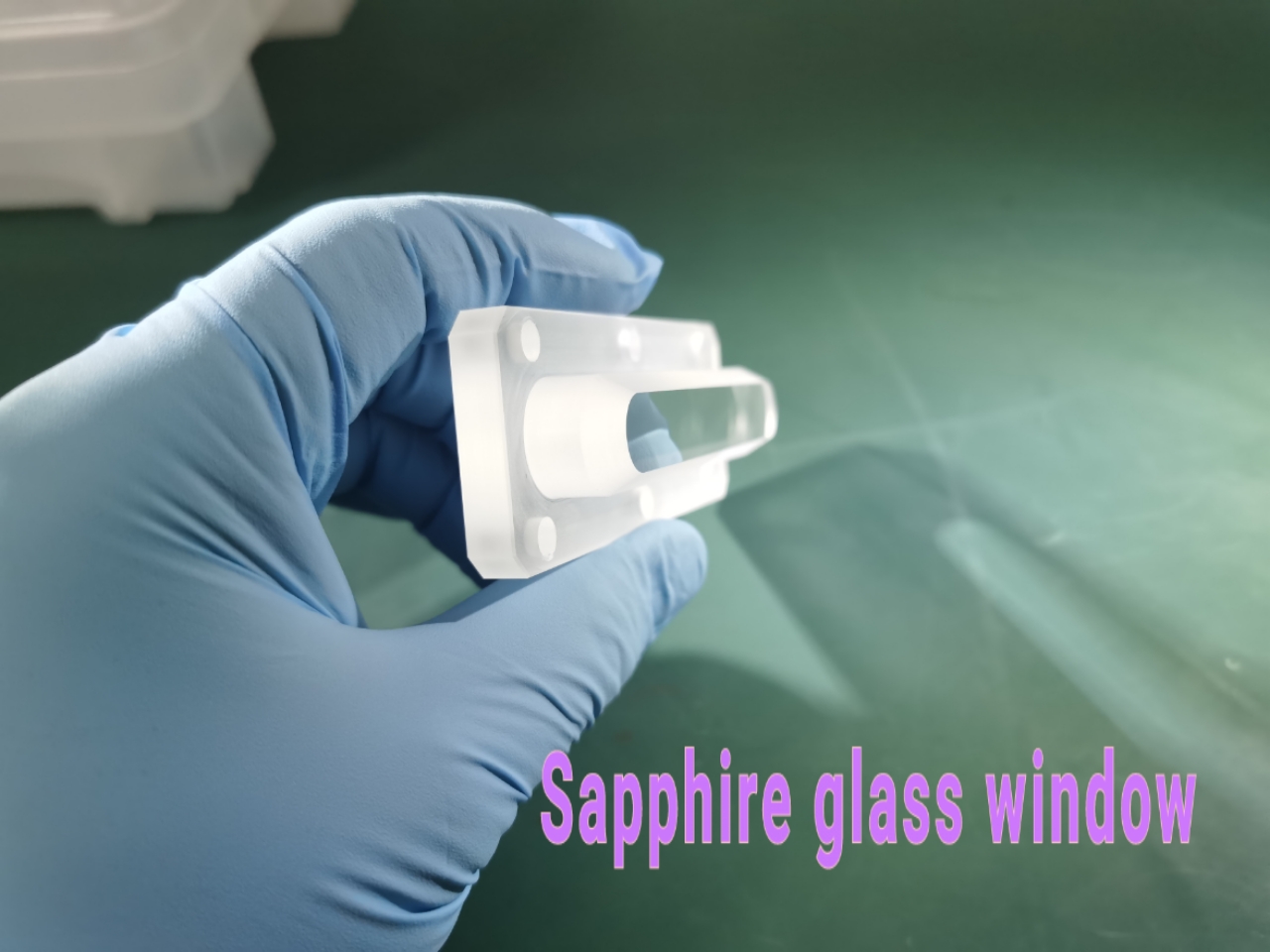

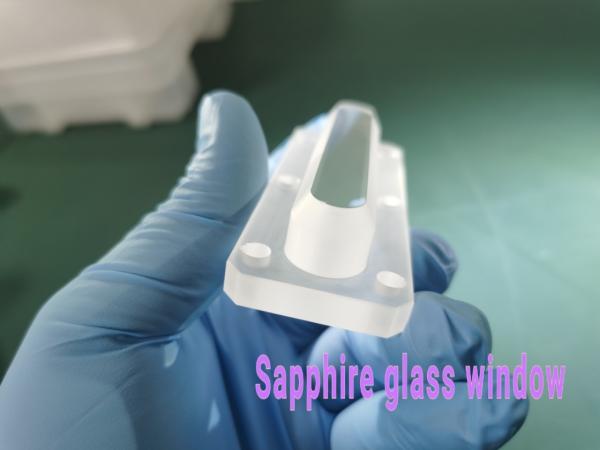

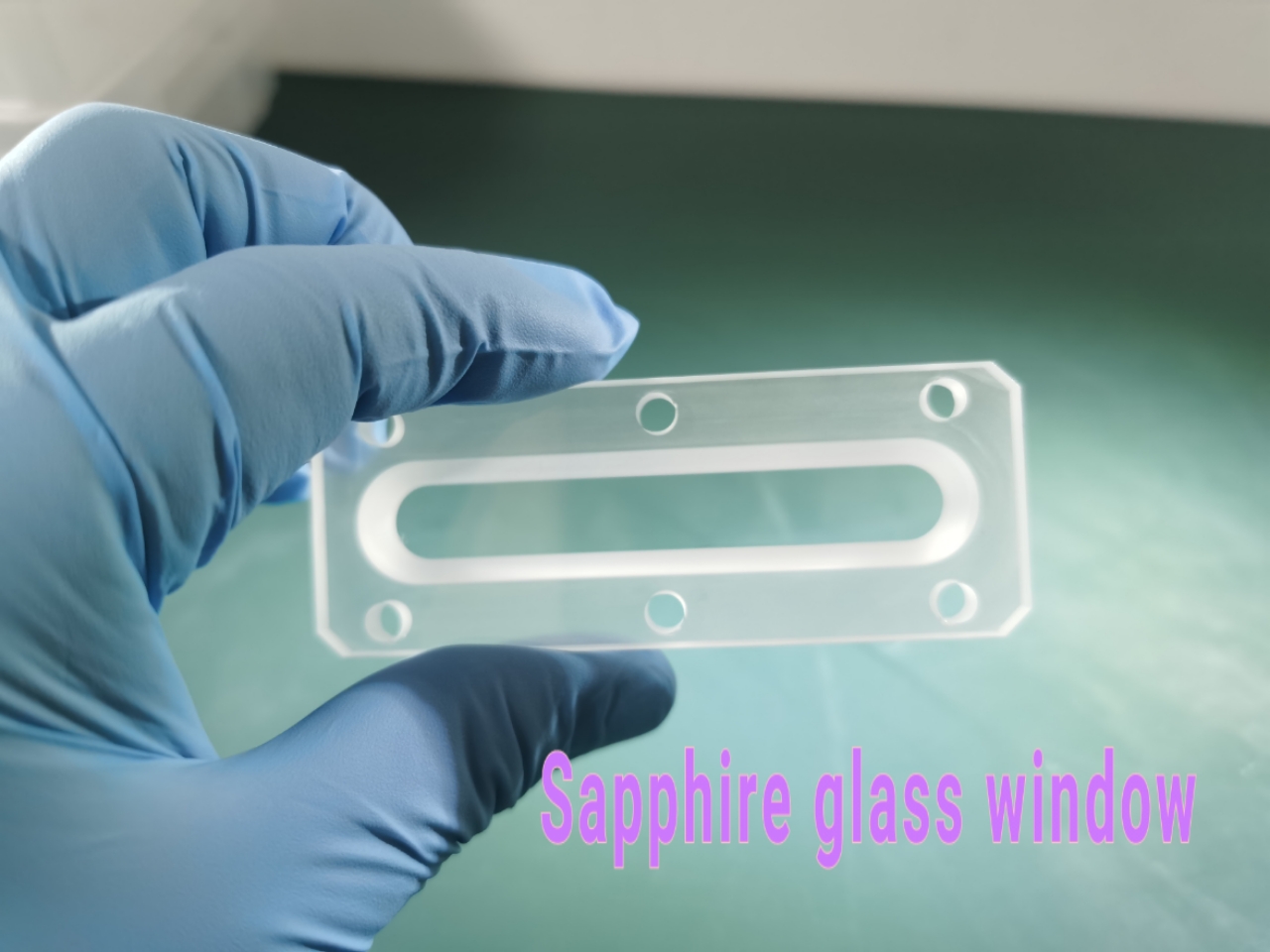

Sapphire Optical Window with step hole for Equipment observation
glass lens
sapphire advantagement
Chemical resistance – sapphire is highly inert and resistant to
attack in most process environments.Mechanical properties – High
Strength – with strength and stiffness 6 times higher than quartz,
combined with excellent wear and scratch resistance – sapphire
becomes the high performance choice.
Optical properties – with transmission from 200 to over 3500 nm,
sapphire is used in applications spanning from UV to visible to
short wave infra red (SWIR).
Thermal properties – usable to temperatures near 2000 C.
Electrical properties – Sapphire provide a high, stable dielectric
constant with the electrical insulation required for electronic
substrates, RF and microwave transmitting windows and tubes.
Surface properties – with high hardness and uniformity sapphire can
be polished to very tight flatness levels 1/10th and eve 1/20th
wave flatness and Angstrom level surface finishes.
Wear properties – high strength and chemical durability combine to
enable the production of dimensionally and optically stable
components for long life use.
Sapphire Processing
Sapphire body→Slicing→Edge
Chamfering→Lapping→Annealing→Polishing→Inspection→Cleaning&Packing
Rough ＆ Polished windows process capacity
| Name | optical glass |
| Material | Sapphire,quartz |
| Diameter Tolerance | +/-0.03 mm |
| Thickness Tolerance | +/-0.01 mm |
| Cler Aperture | over 90% |
| Flatness | ^/4 @632.8nm |
| Surface Quality | 80/50~10/5 scratch and dig |
| Transmission | above 92% |
| Chamfer | 0.1-0.3 mm x 45 degree |
| Focal Length Tolerance | +/-2% |
| Back Focal Length Tolerance | +/-2% |
| Coating | available |
| Usage | opticl system, photographic sysem, Lighting system,Electronic
apparatuse.g.laser,camera,monitor,projector,magnifier,telescope,polarizer,electronic
instrument,led etc. |
Our Related Products
LiTaO3 ingot Sapphire wafers Colored Blue/ Red/ Yellow/ Green/
Sapphire crystal
SiC / GaN/ GaAs/ GaP/ Silicon/ InP / Substrates MgO /GGG/ LaAlO3/
SrTiO3/ crystal
- We can fabricate the sapphire glass from rough material plate to
polished window
- We have the very Fast delivery capacity within 15days by Customized
size
- In addition,we Support { ONE WEEK REFUND MONEY} if not qualified.
- We also can make substrates, wafers, rods,Bump join; Lens with
step＆hole
sapphire detail:
FAQ & CONTACT
Q: What is your minimum order requirement?
A: MOQ:1 piece
Q: How long will it take to execute my order ?
A: After confirming the payment.
Q: Can you give warranty of your products ?
A: We promise the quality, if the quality has any problems, we will
produce new produces or return you money.
Q: How to pay?
A: T/T, Paypal, West Union, bank transfer and or Assurance payment
on Alibaba and etc.
Q: Can you produce custom optics?
A: Yes, we can produce custom optics
About Our Company ＆ Factory
ZMKJ has been fabricating micro to large sapphire windows, sight glasses
and flats for over 10 years. Although sapphire is often more costly than glass and other
transparent materials, its exceptional properties can ultimately save money and reduce critical down time, often
eliminating the need for PM periodic replacements.
We are also specialize in providing a varity of materials wafers,
substrates, components, products are widely used in electronics,
optics, optoelectronics and many other fields. We've been working
closely with many domestic and oversea universities, research
institutions and companies, provide customized products and
services for their R&D projects.
It's our vision to explore and develope cutting edge application of
new materials with customers together.
