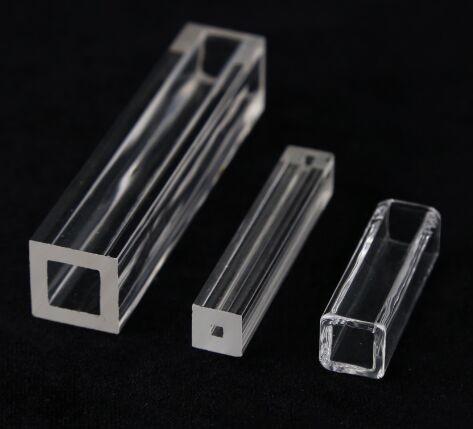

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Ask Lasest Price
    Brand Name : ZMKJ
    Model Number : JGS2 Quartz tube
    Certification : CE
    Price : by case
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/ month
    Delivery Time : 1-4weeks
    • Product Details
    • Company Profile

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    High purityJGS2 JGS1 quartz tube with various customized thickness size and shape

    High Temperature Quartz Tube

    We are a manufacturer of Transparent Quartz Tube Furnace.
    Size&design: Accept customize according to different diameter, thickness,length or sending your drawing.
    Advantage of Quartz Tube Furnace:
    1)High purity :SiO2> 99.99%.
    2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
    3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
    4)Health care and environmental protection.
    5)No air bubble and no air line.
    6)Excellent electrical insulator.

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Properties:

    1. SiO2> 99.99%, high purity quartz tube

    2. Operating Temperature: 1250℃

    Soften Temperature: 1730℃
    3.Excellent visual and chemical performance.
    4. without surface coating
    5. Health care and environmental protection
    6. Any dimension can be made.
    7. CE RoHs SGS approved.

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Application:

    1. High temperature resistance glass can work under 1200°C continuously, and in short time can even work under 1450°C, its softening point is 1730°C.
    2. Quartz glass will not react chemically with acid except hydrofluoric. Acid-stable is 30 times of ceramic and 150 times of stainless steel. Especially chemical stability is incomparable at low temperature.
    3. Electric insulation.
    4. Excellent thermal shock stability
    5.High transmission above 85%
    6.Widely used in semiconductor, lighting and electric heating industries.

    SiO2 99.997%
    Density 2.2 g/cm3
    Degree of hardness moh' scale 6.6 Pa
    Melting point 1732°C
    Working temperature 1100°C
    Max temperature can reach in a short time 1450°C
    Acid tolerance 30 times than Ceramics,150 times than stainless steel
    Visible light transmittance above 93%
    UV spectral region transmittance 80%
    Resistance value 10000 times than ordinary glass
    Annealing point 1180°C
    Softening point 1630°C
    Strain point

    1100°C

    Specification & Properties

    Outside Diameter
    1-400mm
    Length
    1-4000mm
    Wall Thickness
    0.5 MM-40 MM
    Density
    2.2g/cm3
    Compressive Strength
    1100Mpa
    Young's Modulus
    72000Mpa
    Modulus of Rigidity
    31000Mpa
    Mohs Hardness
    5.5~6.5
    Transformation Point
    1280°C
    Softening Point
    1780°C
    Annealing Point
    1250°C
    Specific Heat (20 ~ 350 °C)
    670J/kg.°C
    Thermal Conductivity (20 °C)
    1.4W/m.°C
    Index of Refraction
    1.4585
    Thermal Processing Temperature
    1750~2050°C
    Short-term Working Temperature
    1300°C
    Long-term Working Temperature
    1100°C
    Strain
    1270 C Fused The Quartz Glass Brick
    PPM Grade
    Controlled 10/20/100 PPM
    Electrical Resistivity: 1000℃
    1x106 Ω. cm

    The chemical composition of clear quartz glass: (unit: ppm)

    AL
    Fe
    K
    Na
    Li
    Ca
    Mg
    Cu
    Mn
    Cr
    5-12
    0.19-1.5
    0.71-1.6
    0.12-1.76
    0.38-0.76
    0.17-1.23
    0.05-0.5
    0.05
    0.05
    <0.05
    B
    Ti
    <0.1
    <1

    Spectral transmission of clear quartz glass at 1.0mm thickness

    mm
    <220
    255
    280
    315
    350
    380
    590
    780
    %
    89
    91
    93
    93
    93
    93
    93.2
    93.4

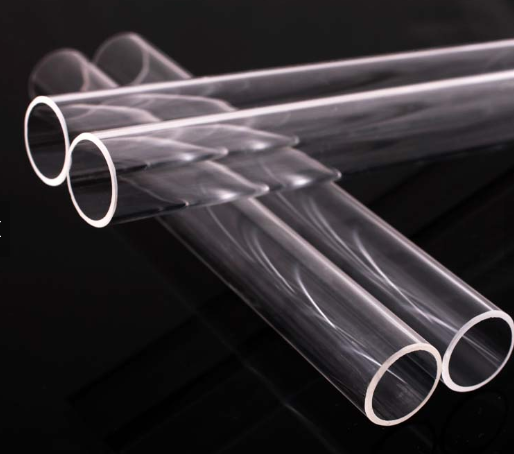

    Prodcution detail

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz TubePolished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz TubePolished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Actual Delivey show

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Polished Medicine Dia 200mm JGS2 JGS1 Quartz Tube

    Our Services

    1. Timely response,

    Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.

    2.Sample evaluation

    Provide sample and trial order are accepted for the quality evaluation.

    3. Strict quality control

    Arrange production on time and control quality strictly.

    4. Short delivery time

    Book the earliest vessel or plane to guarantee the delivery time.

    5. Professional and complete shipping documents

    Provide all the detailed news and pictures from order to delivery;

    Offer relative export documents and original certificate if needed;

    6. Warm and considerable after-sale service

    Company Information

    zmkj is one of leading manufacturers and distributors of high quality refractories for use in industries including semiconductor glass wafers and lens works.

    Our company can provide not only the domestic and foreign customers excellent quality of high-temperature thermal insulation material, but also the first-rate service including professional furnace lining design, installation supervision, engineering construction etc.

    We can provide our customers with professional and personalized products and engineering services according to the actual working condition and requirements of each customer, in order to meet customers' increasing demand of energy-saving and products quality improving, Our tenet is: quality and credibility is fundamental, technology and service is the life.

    FAQ

    HS Code: 7011901000

    Orginial certificate: Can be provided.
