    High Purity Silicon Carbide Wafer Prime/Dummy/Ultra Grade 4H-Semi SiC Wafers For 5G Device

    High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers, sic crystal ingots sic semiconductor substrates,Silicon Carbide crystal Wafer/ Customzied as-cut sic wafers

    About Silicon Carbide (SiC)Crystal

    Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.

    PROPERTIES of 4H-SiC Single Crystal

    • Lattice Parameters: a=3.073Å c=10.053Å
    • Stacking Sequence: ABCB
    • Mohs Hardness: ≈9.2
    • Density: 3.21 g/cm3
    • Therm. Expansion Coefficient: 4-5×10-6/K
    • Refraction Index: no= 2.61 ne= 2.66
    • Dielectric Constant: 9.6
    • Thermal Conductivity: a~4.2 W/cm·K@298K
    • (N-type, 0.02 ohm.cm) c~3.7 W/cm·K@298K
    • Thermal Conductivity: a~4.9 W/cm·K@298K
    • (Semi-insulating) c~3.9 W/cm·K@298K
    • Band-gap: 3.23 eV Band-gap: 3.02 eV
    • Break-Down Electrical Field: 3-5×10 6V/m
    • Saturation Drift Velocity: 2.0×105m/

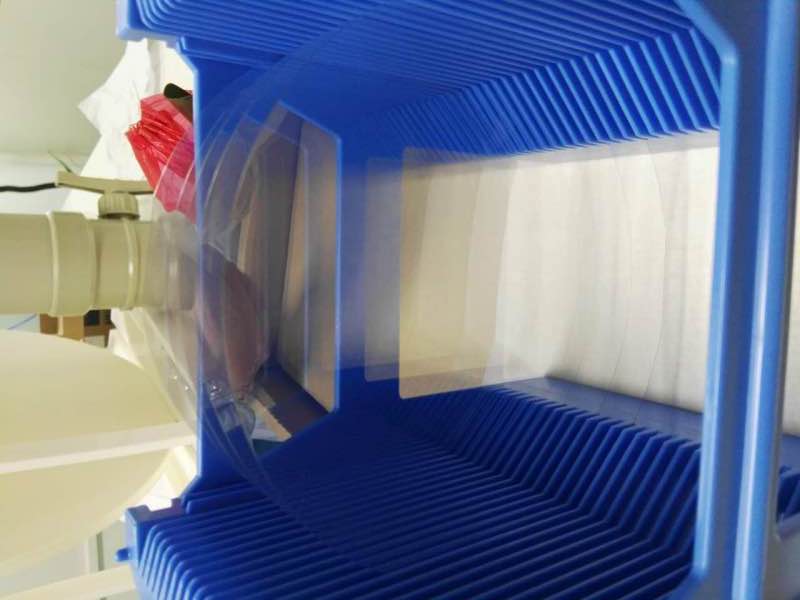

    4 inch n-doped 4H Silicon Carbide SiC Wafer

    High purity 4inch diameter Silicon Carbide (SiC) Substrate Specification


    4 inch Diameter High Purity 4H Silicon Carbide Substrate Specifications

    SUBSTRATE PROPERTY

    Production Grade

    Research Grade

    Dummy Grade

    Diameter

    100.0 mm+0.0/-0.5 mm

    Surface Orientation

    {0001} ±0.2°

    Primary Flat Orientation

    <11-20> ± 5.0 ̊

    Secondary Flat Orientation

    90.0 ̊ CW from Primary ± 5.0 ̊, silicon face up

    Primary Flat Length

    32.5 mm ±2.0 mm

    Secondary Flat Length

    18.0 mm ±2.0 mm

    Wafer Edge

    Chamfer

    Micropipe Density

    ≤5 micropipes/ cm2

    10 micropipes/ cm2

    ≤50 micropipes/ cm2

    Polytype areas by high-intensity light

    None permitted

    10% area

    Resistivity

    1E5 Ω·cm

    (area 75%)≥1E5 Ω·cm

    Thickness

    350.0 μm ± 25.0 μm or 500.0 μm ± 25.0 μm

    TTV

    10μm

    15 μm

    Bow(absolute value)

    25 μm

    30 μm

    Warp

    45 μm

    Surface Finish

    Double Side Polish, Si Face CMP(chemical polishing)

    Surface Roughness

    CMP Si Face Ra≤0.5 nm

    N/A

    Cracks by high-intensity light

    None permitted

    Edge chips/indents by diffuse lighting

    None permitted

    Qty.2 <1.0 mm width and depth

    Qty.2 <1.0 mm width and depth

    Total usable area

    ≥90%

    ≥80%

    N/A

    *The other specifications can be customized according to customers requirements


    6 inch High-purity Semi-insulating 4H-SiC Substrates Specifications

    Property

    U(Ultra) Grade

    P(Production)Grade

    R(Research)Grade

    D(Dummy)Grade

    Diameter

    150.0 mm±0.25 mm

    Surface Orientation

    {0001} ± 0.2°

    Primary Flat Orientation

    <11-20> ± 5.0 ̊

    Secondary flat Orientation

    N/A

    Primary Flat Length

    47.5 mm ±1.5 mm

    Secondary flat Length

    None

    Wafer Edge

    Chamfer

    Micropipe Density

    ≤1 /cm2

    ≤5 /cm2

    ≤10 /cm2

    ≤50 /cm2

    Polytype area by High-intensity Light

    None

    ≤ 10%

    Resistivity

    ≥1E7 Ω·cm

    (area 75%)≥1E7 Ω·cm

    Thickness

    350.0 μm ± 25.0 μm or 500.0 μm ± 25.0 μm

    TTV

    10 μm

    Bow(Absolute Value)

    40 μm

    Warp

    60 μm

    Surface Finish

    C-face: Optical polished, Si-face: CMP

    Roughness(10μm×10μm)

    CMP Si-face Ra<0.5 nm

    N/A

    Crack by High-intensity Light

    None

    Edge Chips/Indents by Diffuse Lighting

    None

    Qty≤2, the length and width of each<1mm

    Effective Area

    ≥90%

    ≥80%

    N/A


    * Defects limits apply to entire wafer surface except for the edge exclusion area. # The scratches should be checked on Si face only.


    About SiC Substrates Applications
    CATALOGUE COMMON SIZE

    4H-N Type / High Purity SiC wafer/ingots
    2 inch 4H N-Type SiC wafer/ingots
    3 inch 4H N-Type SiC wafer
    4 inch 4H N-Type SiC wafer/ingots
    6 inch 4H N-Type SiC wafer/ingots

    4H Semi-insulating / High Purity SiC wafer

    2 inch 4H Semi-insulating SiC wafer
    3 inch 4H Semi-insulating SiC wafer
    4 inch 4H Semi-insulating SiC wafer
    6 inch 4H Semi-insulating SiC wafer
    6H N-Type SiC wafer
    2 inch 6H N-Type SiC wafer/ingot

    Customzied size for 2-6inch


    Sales & Customer Service

    Materials Purchasing

    The materials purchasing department is responsible to gather all the raw materials needed to produce your product. Complete traceability of all products and materials, including chemical and physical analysis are always available.

    Quality

    During and after the manufacture or machining of your products ,quality control department is involved in making sure that all materials and tolerances meet or exceed your specification.


    Service

    We pride ourselves in having sales engineering staff with over 5 years experiences in the semiconductor industry. They are trained to answer technical questions as well as provide timely quotations for your needs.

    we are at your side by any time when you have problem,and resolve it in 10hours.
