Double Side Polish Silicon Carbide Wafer 2-6'' 4H N - Doped SiC Wafers

Ask Lasest Price
Brand Name :	ZMKJ
Model Number :	customzied size
Price :	600-1500usd/pcs by FOB
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1-50pcs/month
Delivery Time :	1-6weeks

Add to Cart

Product Details
Company Profile

Double Side Polish Silicon Carbide Wafer 2-6'' 4H N - Doped SiC Wafers

4H-N Testing grade 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers, sic crystal ingots sic semiconductor substrates,Silicon Carbide crystal Wafer

About Silicon Carbide (SiC)Crystal

Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs

4 inch Conductive SiC Wafer Specification
Product	4H-SiC
Grade	Grade I	Grade II	Grade III
polycrystalline areas	None permitted	None permitted	<5%
polytype areas	None permitted	≤20%	20% ~ 50%
Micropipe Density)	< 5micropipes/cm-2	< 30micropipes/cm-2	<100micropipes/cm-2
Total usable area	>95%	>80%	N/A
Diameter	100.0 mm +0/-0.5 mm
Thickness	500 μm ± 25 μm or Customer Specification
Dopant	n type: nitrogen
Primary Flat Orientation)	Perpendicular to <11-20> ± 5.0°
Primary Flat Length	32.5 mm ± 2.0 mm
Secondary Flat Orientation)	90° CW from Primary flat ± 5.0°
Secondary Flat Length)	18.0 mm ± 2.0 mm
On axis Wafer Orientation)	{0001} ± 0.25°
Off axis Wafer Orientation	4.0° toward <11-20> ± 0.5° or Customer Specification
TTV/BOW/Warp	< 5μm / <10μm /< 20μm
Resistivity	0.01~0.03 Ω×cm
Surface Finish	C Face polish.Si Face CMP (Si face: Rq < 0.15 nm) or Customer Specification			Double side polish

About our ZMKJ Company

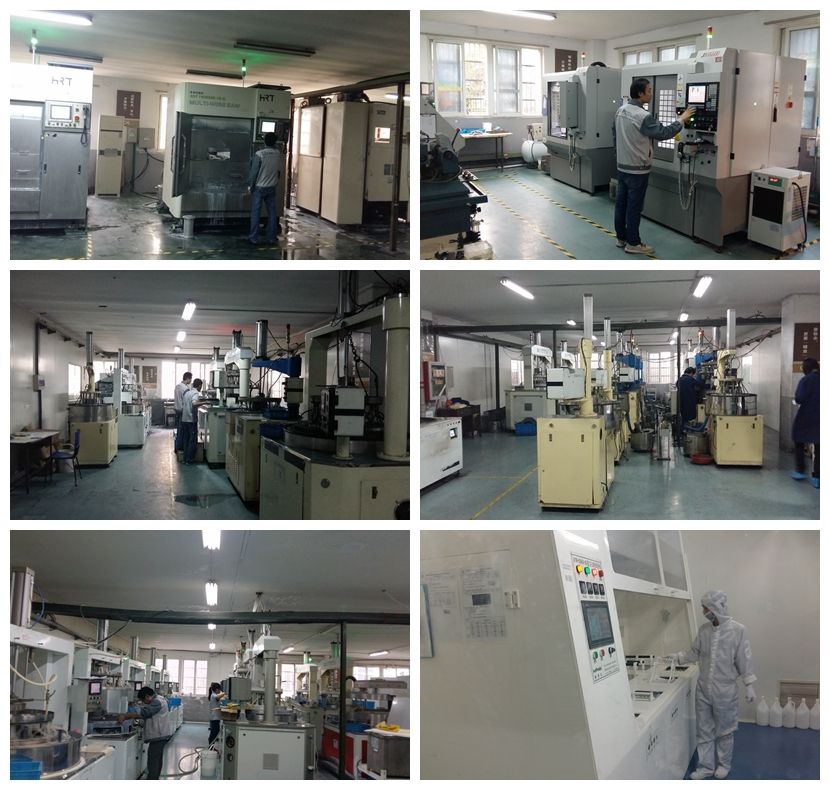

SHANGHAI FAMOUS TRADE CO.,LTD. locates in the city of Shanghai, Which is the best city of China, and our factory is founded in Wuxi city in 2014.

We specialize in processing a varity of materials into wafers, substrates and custiomized optical glass parts.components widely used in electronics, optics, optoelectronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects.

It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputatiaons.

CATALOGUE COMMON SIZE

4H-N Type / High Purity SiC wafer 2 inch 4H N-Type SiC wafer 3 inch 4H N-Type SiC wafer 4 inch 4H N-Type SiC wafer 6 inch 4H N-Type SiC wafer	4H Semi-insulating / High Purity SiC wafer 2 inch 4H Semi-insulating SiC wafer 3 inch 4H Semi-insulating SiC wafer 4 inch 4H Semi-insulating SiC wafer 6 inch 4H Semi-insulating SiC wafer
6H N-Type SiC wafer 2 inch 6H N-Type SiC wafer
