Fe3+ Ti+ doped Blue colored sapphire Al2O3 Single crystal ＆Ruby
lens
1.About the color
The main component of sapphire is alumina (Al2O3). The simple
alumina single crystal is transparent and colorless, but it
penetrates into the growing sapphire by different color elements,
thus making the sapphire crystals different colors.

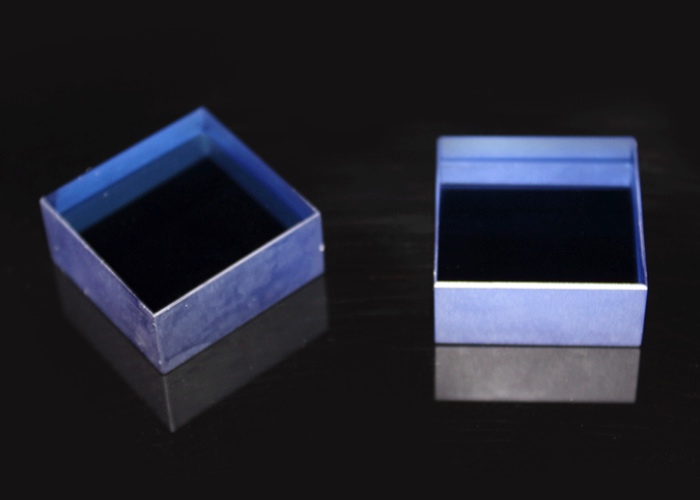

When artificially doped with iron ions (Fe3+) and titanium ions
(Ti+), the crystals will appear blue sapphire (Blue Sapphire).
When the crystal is doped with iron (Fe3+) and cobalt (Co2+),
vanadium (V3+) the crystal will appear green.
( Green Sapphire)
When the crystal contains chromium ions (Cr3+), the crystal will
appear red and become to be Ruby.
When the crystal contains nickel ions (Ni3+), the crystal will
appear yellow and become Yellow Sapphire.
About the Material
| Product Name: | Fe3+ Ti+ Cr3+ sapphire Ruby sapphire crystal |
| Product Description: | Sapphire (Sapphire, also known as white stones, the formula Al2O3)
has a very good thermal properties, excellent electrical
characteristics and dielectric properties, and anti-chemical
corrosion, it is high temperature, thermal conductivity, high
hardness, infrared transparent, good chemical stability. Widely used in high-temperature infrared window materials and III-V
nitride epitaxial film substrate and a variety ofmaterials to meet
the growing blue, purple, white light-emitting diode(LED) and blue
laser (LD) needs, Branch Crystal company specializing in the
production of high quality polished sapphire crystal and epitaxial
substrates will provide you with a lot of high quality and low
price monocrystalline substrate. |
| Technical parameters: | | Crystal structure | Hexagonal a = 4.758 Å c = 12.992 Å | | Crystal orientation | (11-20) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å
(10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å | | Crystal purity | > 99.99% | | Mp | 2040 o C | | Density | 3.98 g / cm 3 | | Hardness | 9 (mohs) | | Thermal expansion | 7.5 (x10 -6 / o C) | | Heat capacity | 0.10 (cal / o C) | | Thermal conductivity | 46.06 @ 0 o C 25.12 @ 100 o C, 12.56 @ 400 o C (W / (mK)) | | Permittivity | ~ 9.4 @ 300K at A axis ~ 11.58 @ 300K at C axis | | Loss tangent | <2x10 -5 at A axis, <5 x10 -5 at C axis |
|
| Specifications: | C, A, Tolerance: + / -1 degrees
dia2" x0.5mm, 10x10x0.5mm, 10x5x0.5mm 5x5mmt,20x20mmt,30x30mmt, 35x35mmt,
Single or double side polished , Ra <5A
Can be customized orientation and size. |
| Standard Packaging: | 1000 clean room or single box packaging |
