Ultra Thin Sapphire wafer sapphire windows Substrate 100um 0.1mm Thickness 2 3 4 inch Double Side Polished Wafers

Ask Lasest Price
Brand Name :	ZMKJ
Model Number :	2INCH 0.1mm
Price :	by case
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per month
Delivery Time :	On stocks

Add to Cart

Product Details
Company Profile

Ultra Thin Sapphire wafer sapphire windows Substrate 100um 0.1mm Thickness 2 3 4 inch Double Side Polished Wafers

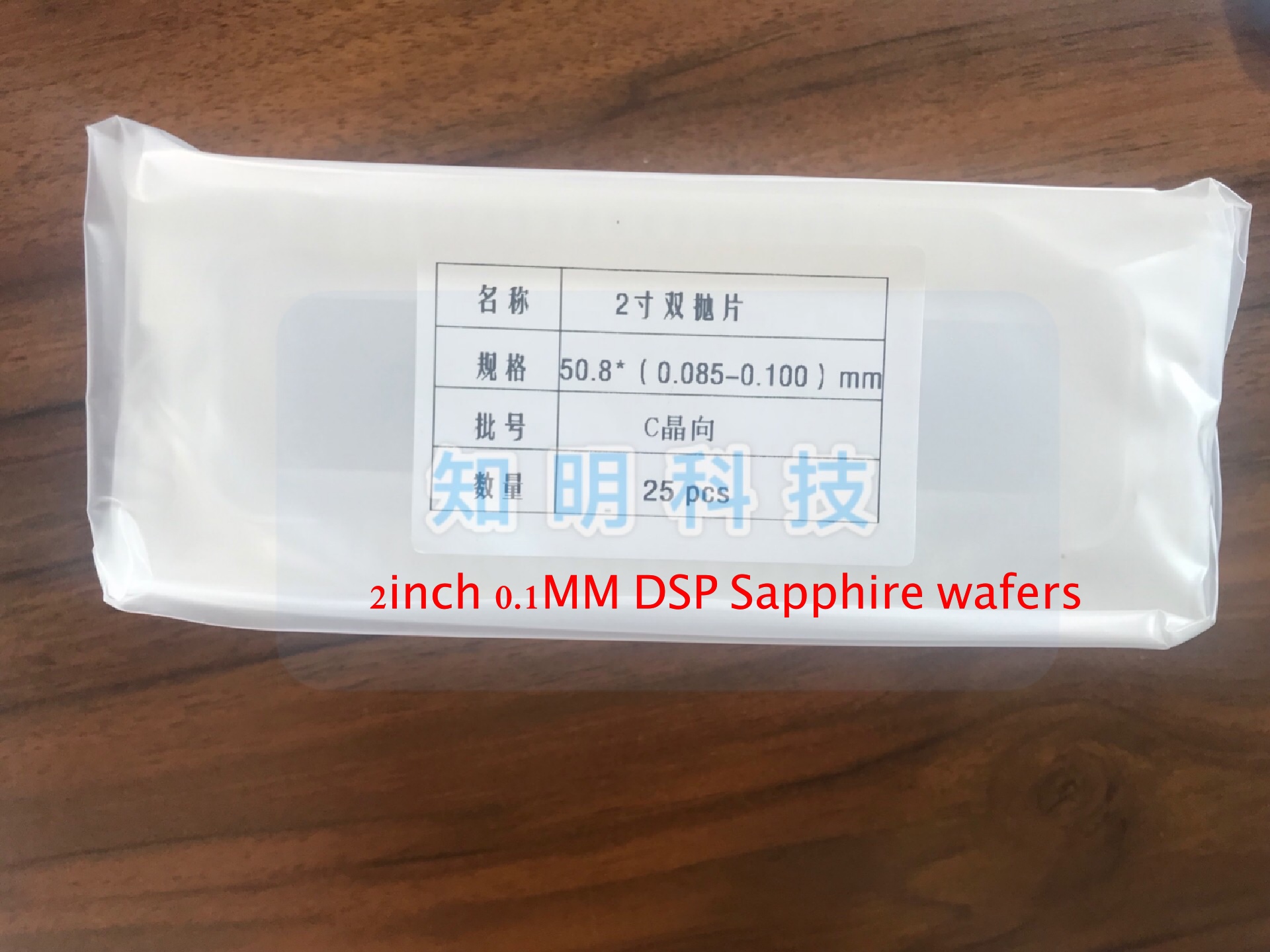

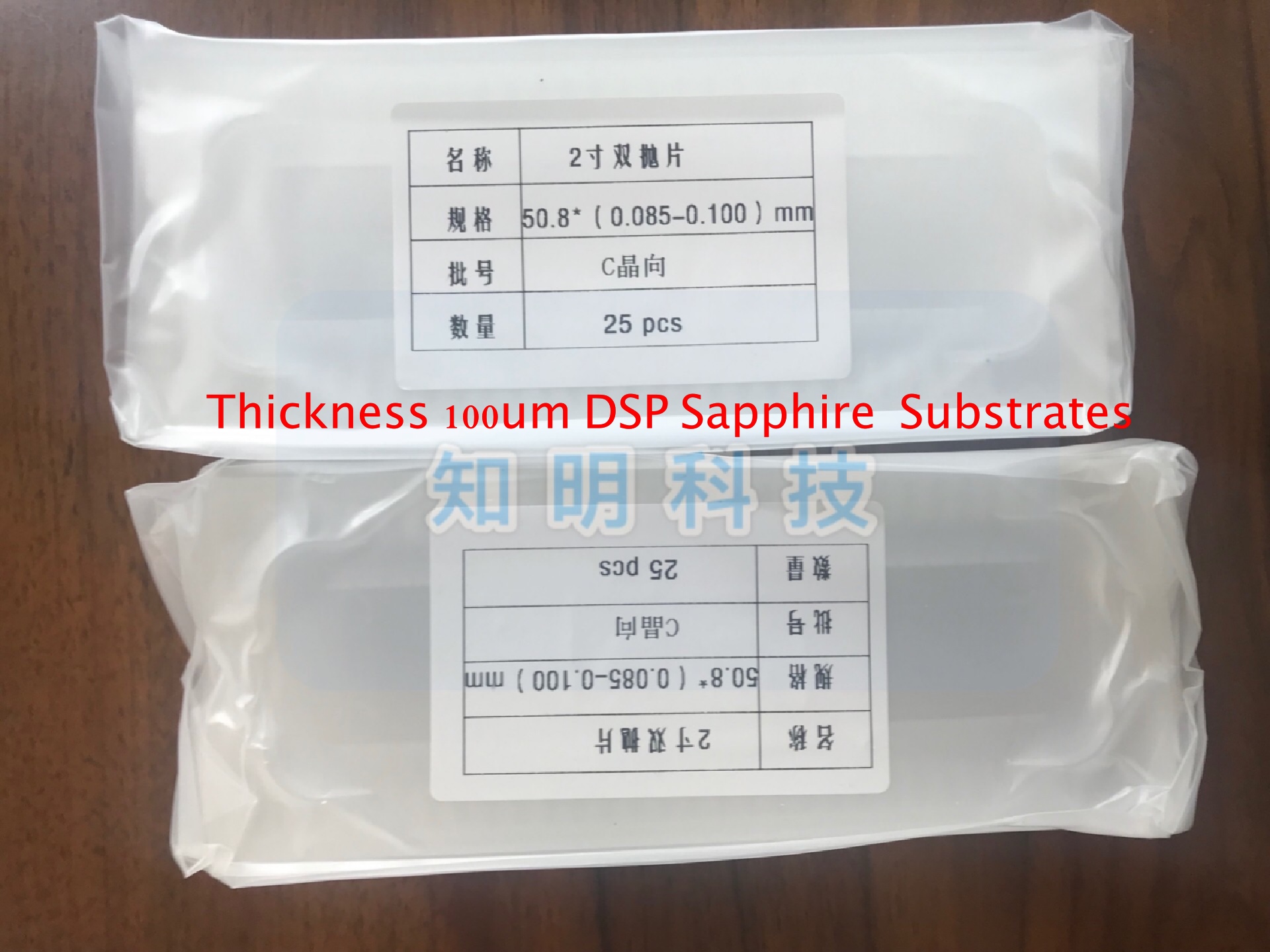

Ultra-thin 2inch sapphire DSP wafers thickness 100um 0.1mm

Why Sapphire?



	One of the hardest materials available
	Superior IR & UV transmission compared to other optical materials
	Highly scratch & abradant resistant
	Highly chemical resistant
	Maximum temperature rating of almost 2000C

The Detail for 2inch C-axis wafers

Size: 2 inch DSP-0.1-C-Sapphire

Material: KY Sapphire Al2O3 single crystal without bubble；color ；

Orientation:R-cut,R-axis off 0.0+/-0.1°；
Diameter: 50.8 +/-0.2mm ；

Thickness:100 ± 15 um ；
OF Flat:16.0 +/- 1.0 mm ；
OF orientation: A-axis
Surface: SSP Epi-ready Polished ；
TTV<= 10um ；BOW<= 20um ； Warp<= 20 um ；
Front Surface Roughness (Ra) Ra <= 0.3 nm ；
Back Surface Roughness (Ra) Ra = 1.0 +/-0.2um ；
Edge: from 1mm ；

General Other Size Sheet on Stocks

Standard wafer 2 inch C-plane sapphire wafer SSP/DSP 0.1mm,0.175mm,0.3mm,0.4mm,0.5mm 3 inch C-plane sapphire wafer SSP/DSP 0.43mm,0.5mm 4 inch C-plane sapphire wafer SSP/DSP 0.25mm,0.3mm,0.4mm,0.5mm,0.65mm 6 inch C-plane sapphire wafer SSP/DSP 1.0mm,1.3mm, 0.8mm	Special Orientation A-plane (1120) sapphire wafer R-plane (1102) sapphire wafer M-plane (1010) sapphire wafer All on stocks C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis Other customized orientation
Customized Size 10x10x0.5mm sapphire wafer 20x20x0.5mm sapphire wafer Ultra thin (100um) 2inch sapphire wafer 8 inch sapphire wafer	Patterned Sapphire Substrate (PSS) 2 inch C-plane PSS 4 inch C-plane PSS

Other Related Products

GaAs Substrates Colored Sapphire Crystal

Customized Sapphire lens/ LiTaO3 Ingots/ SiC Substrates/ LaAlO3 Substrates

Why Choose us


	Onsite engineers & master optician
	10+ years of expertise in sapphire & exotic materials manufacturing
	ISO 9001:2008 Certified
	Can Customzied make many Difficult and complex sapphire parts
	State-of-the-art manufacturing equipment & measurement capabilities
	Cost saving overseas sourcing (for non-ITAR applications only)

Packing & Delivery

Packing Details : Packing, BOX,CARTONS

Delivery Details : 3-7 working days after order of Solid bicycle tire tubesrecieving your pament will be send out.

FAQ

1. Q: Where is your company located? How can I visit there?
A: Our factory is located in Wuxi City, Jiangsu Province, China.
2. Q: Can I get sample and how long will it take?
A:Yes. We can supply sample. And you need to pay for the sample and courier. About 7days after receiving the payment, we will send it out.
3. Q: What's the MOQ?
A: Our MOQ is 25 pieace for this size.
4. Q: Can I have my own customized product?
A: Yes. Your customized requirements for logo, design, package, carton mark, your language manual etc. are very welcome.
5. Q: Can I mix different models in one container?
A: Yes. Different models can be mixed in one container.
6. Q: What is the payment terms?
A:100% T/T

If you have another question, pls feel free to contact us by E-mail or Tel.
