AS - CUT Shaped Sapphire Substrate Wafer Windows 8inch 200mm

Ask Lasest Price
Brand Name :	ZMKJ
Model Number :	8inch 200mm sapphire wafers
Price :	usd50/pc
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per month
Delivery Time :	2-3 weeks

Add to Cart

Product Details
Company Profile

DSP / SSP / AS - CUT Shaped Sapphire Substrate Wafer Windows 8inch 200mm

GaAs SubstratesUltra-thin 8inch sapphire DSP/SSP wafers thickness 100um 0.1mm
8inch 200mm Ultra Thin sapphire wafers 0.1mm-50mm Thickness C-plane DSP Sapphire wafer

Material: Single crystal Al2O3 99.999％
Diameter200.00±0.2mm
Thickness :725±25um
Primary flat: No notch
OF Orientation flat: a±0.2°C-plane(0001)
Orientation: c±0.3°
Frontside Surface Roughness:Ra＜0.3nm
Backside Surface Roughness: Ra＜0.3nm
Or double side polished
TTV:＜15um BOW:-20~0um WARP:＜30um
Laser Mark Series No. by needs
Package:Vacuum-sealed containers with nitrogen backfill in a class 100environment
Cleanliness :Free visible contamination

PRODUCT DESCRIPTION

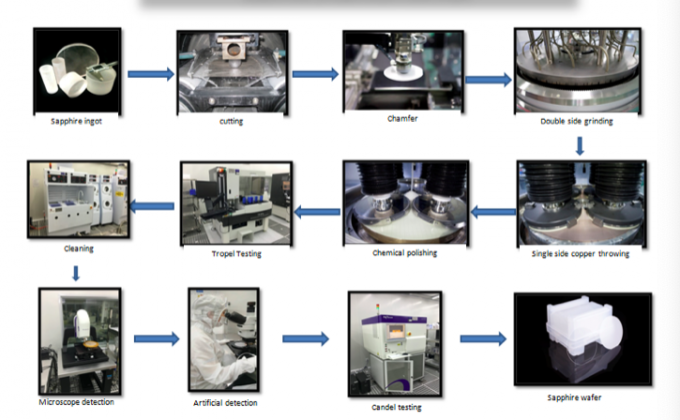

Sapphire crystal body--->get rough ingot in customized axis--->cut tail＆ top off---->

repair diameter shape----> Grind OF surface--->( anneal -->)wire cut--->chamfer-->anneal--->lapped---polished---infection

8 Inch Sapphire Wafer With Notch For Semiconductor Carrier Plate Dsp / Ssp Surface 1

Synthetic sapphire—sometimes referred to as sapphire glass—is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant.

The key benefits of sapphire windows are:

Very wide optical transmission band from UV to near-infrared, (0.15–5.5 µm)
Significantly stronger than other optical materials or standard glass windows
Highly resistant to scratching and abrasion
Extremely high melting temperature (2030 °C)

Other Related Products
GaN Substratea

Colored Sapphire Crystal

Customized Sapphire lens/ LiTaO3 Ingots/ SiC Substrates/ LaAlO3 Substrates

Q: What's your MOQ?

A: (1) For inventory, the MOQ is 10pcs.

(2) For customized products, the MOQ is 25pcs up.

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.

Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

Q: Do you have standard products?

A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.

Q: How to pay?

A:50％deposit, left before delivery T/T,

Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical

components based on your needs.
