    Dia50.8mm Thic100+/-15um Sapphire Wafer Sapphire Window High Optical Transmittance DSP/SSP

    Ask Lasest Price
    Brand Name : ZMKJ
    Model Number : 2INCH 0.1mm
    Price : usd20/pc
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per month
    Delivery Time : in stocks
    • Product Details
    • Company Profile

    Dia50.8mm Thic100+/-15um Sapphire Wafer Sapphire Window High Optical Transmittance DSP/SSP

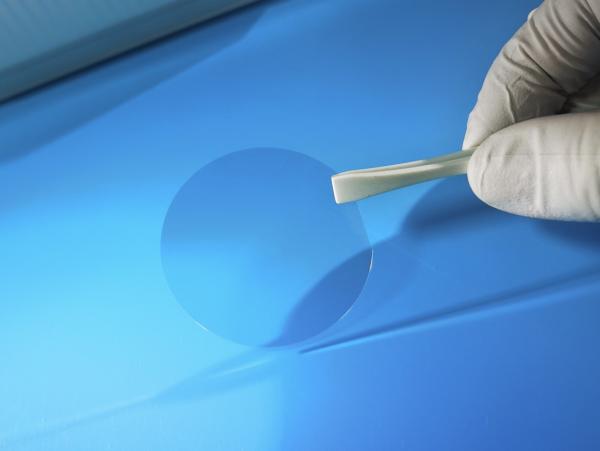

    Ultra-thin 2inch sapphire DSP wafers thickness 100um 0.1mm

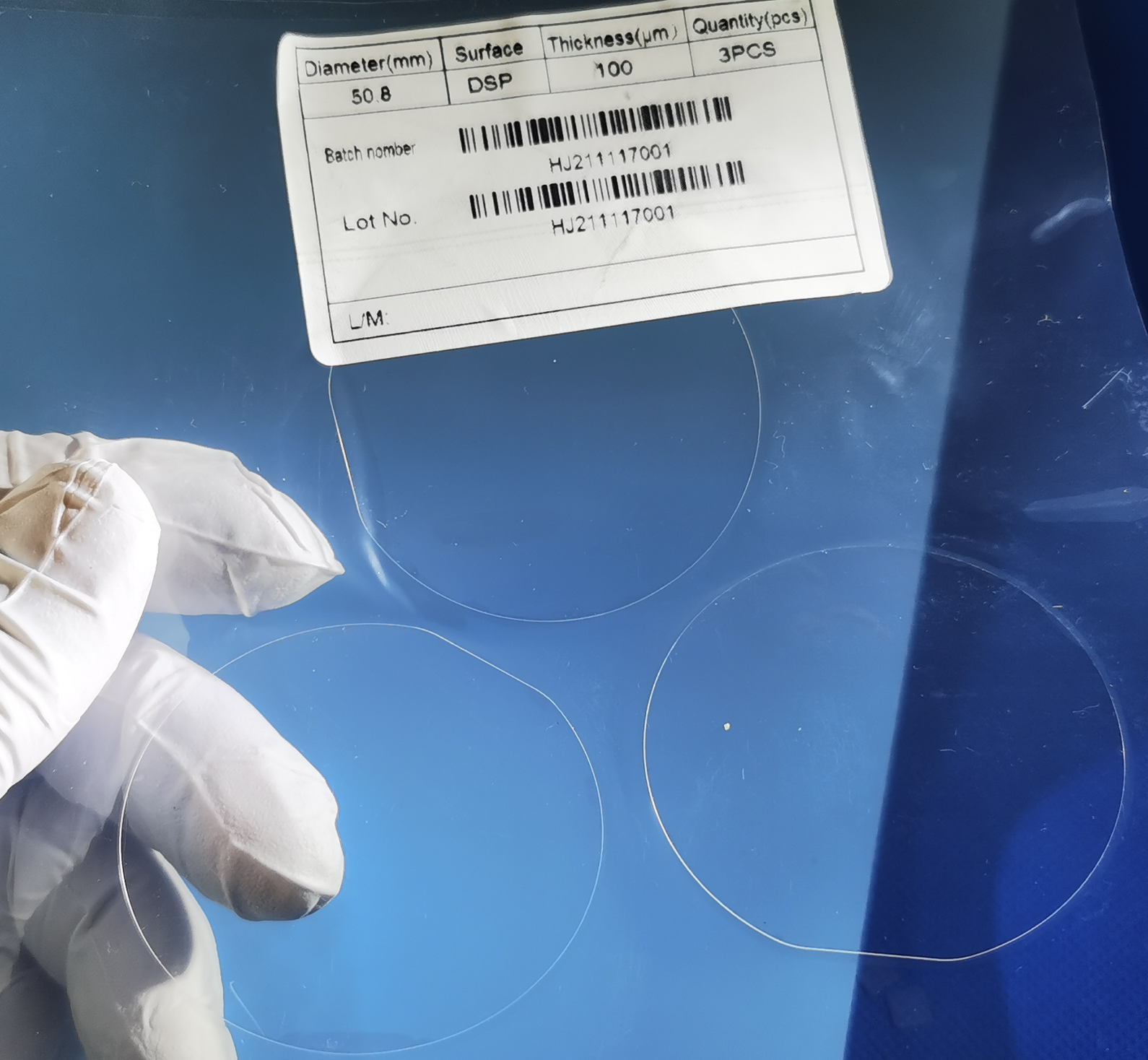

    2inch 100um Ultra Thin sapphire wafers 0.1mm Thickness C-plane DSP Sapphire wafer

    Why Sapphire?

    1. Sapphire has a high optical transmittance, so it is widely used as microelectronic tube dielectric material, ultrasonic conduction element, waveguide laser cavity, and other optical elements, as window materials for infrared military devices, space vehicles, high-intensity lasers and optical communications.

    2. Sapphire has high rigidity, high strength, high working temperature, abrasion resistance, corrosion resistance characteristics, so sapphire substrate is often used in harsh environments, such as boiler water gauge (high-temperature resistance), commodity bar code scanner, bearing, and other precision manufacturing (wear resistance), coal, gas, well detection sensors and detector windows (anti-corrosion).

    3. Sapphire has the characteristics of electrical insulation, transparency, good thermal conductivity, and high rigidity, so it can be used as the substrate material of integrated circuits, such as LED and microelectronic circuits, ultra-high-speed integrated circuit.


    The Detail for 2inch C-axis wafers


    Size: 2 inch DSP-0.1-C-Sapphire

    Material: KY Sapphire Al2O3 single crystal without bubble;

    Color:Transparent

    Orientation:R-cut,R-axis off 0.0+/-0.1°;
    Diameter: 50.8 +/-0.2mm ;

    Thickness:100 ± 15 um ;
    OF Flat:16.0 +/- 1.0 mm ;
    OF orientation: A-axis/C-axis/M-axis/
    Surface: SSP Epi-ready Polished ;
    TTV<= 10um ;BOW<= 20um ; Warp<= 20 um ;
    Front Surface Roughness (Ra) Ra <= 0.3 nm;

    Back Surface Roughness (Ra) Ra = 1.0 +/-0.2um ;
    Edge: from 1mm ;

    General Other Size Sheet on Stocks

    Standard wafer
    2 inch C-plane sapphire wafer SSP/DSP
    0.1mm,0.175mm, 0.2mm; 0.3mm,0.4mm,0.5mm
    3 inch C-plane sapphire wafer SSP/DSP
    0.43mm,0.5mm;
    4 inch C-plane sapphire wafer SSP/DSP
    0.25mm,0.3mm,0.4mm,0.5mm,0.65mm
    6 inch C-plane sapphire wafer SSP/DSP
    1.0mm,1.3mm, 0.8mm
    Special Orientation
    A-plane (1120) sapphire wafer
    R-plane (1102) sapphire wafer
    M-plane (1010) sapphire wafer
    All on stocks
    C-axis with a 0.5°~ 10° offcut, toward A-axis or M-axis
    Other customized orientation
    Customized Size
    10x10x0.5mm sapphire wafer
    20x20x0.5mm sapphire wafer
    Ultra thin (100um) 2inch sapphire wafer
    8 inch sapphire wafer

    Patterned Sapphire Substrate (PSS)
    2 inch C-plane PSS
    4 inch C-plane PSS


    Other Related Products

    GaAs substrate
    Colored Sapphire Crystal

    Customized Sapphire lens/ LiTaO3 Ingots/ SiC Substrates/ LaAlO3 Substrates


    Why Choose us

    Onsite engineers & master optician
    10+ years of expertise in sapphire & exotic materials manufacturing
    ISO 9001:2008 Certified
    Can Customzied make many Difficult and complex sapphire parts
    State-of-the-art manufacturing equipment & measurement capabilities
    Cost saving overseas sourcing (for non-ITAR applications only)
    Packing & Delivery

    Packing Details : Packing, BOX,CARTONS

    Delivery Details : 3-7 working days after order of Solid bicycle tire tubesrecieving your pament will be send out.

    FAQ

    1. Q: Where is your company located? How can I visit there?
    A: Our factory is located in Wuxi City, Jiangsu Province, China.
    2. Q: Can I get sample and how long will it take?
    A:Yes. We can supply sample. And you need to pay for the sample and courier. About 7days after receiving the payment, we will send it out.
    3. Q: What's the MOQ?
    A: Our MOQ is 25 pieace for this size.
    4. Q: Can I have my own customized product?
    A: Yes. Your customized requirements for logo, design, package, carton mark, your language manual etc. are very welcome.
    5. Q: Can I mix different models in one container?
    A: Yes. Different models can be mixed in one container.
    6. Q: What is the payment terms?
    A:100% T/T

    If you have another question, pls feel free to contact us by E-mail or Tel.
