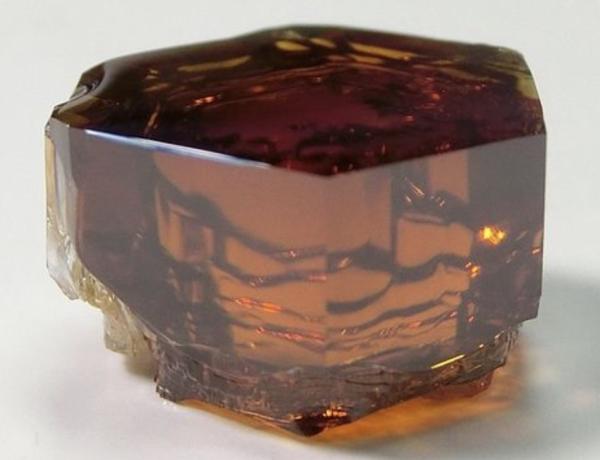

10x10mm or diameter 10mm dia25.4mm dia30mm, dia45mm, dia50.8mm AlN
substrate AlN single crystal wafers
Applications of AlN template
Silicon-based semiconductor technology has reached its limits and
could not satisfy the requirements of future
electronic devices. As a typical kind of 3rd/4th-generation
semiconductor material, aluminum nitride (AlN) has
superior physical and chemical properties such as wide bandgap,
high thermal conductivity, high breakdown filed,
high electronic mobility and corrosion/radiation resistance, and is
a perfect substrate for optoelectronic devices,
radio frequency (RF) devices, high-power/high-frequency electronic
devices, etc.. Particularly, AlN substrate is the
best candidate for UV-LED, UV detectors, UV lasers, 5G
high-power/high-frequency RF devices and 5G SAW/BAW
devices, which could widely be used in environmental protection,
electronics, wireless communications, printing,
biology, healthcare, military and other fields, such as UV
purification/sterilization, UV curing, photocatalysis, coun
terfeit detection, high-density storage, medical phototherapy, drug
discovery, wireless and secure communication,
aerospace/deep-space detection and other fields.
we have developed a serials of proprietary processes and
technologies to fabricate
high-quality AlN templates. At present, Our OEM is the only company
worldwide who can produce 2-6 inch AlN
templates in large-scale industrial production capability with
capacity of 300,000 pieces in 2020 to meet explosive
market demand from UVC-LED, 5G wireless communication, UV detectors
and sensors etc
We currently provide customers with standardized
10x10mm/Φ10mm/Φ15mm/Φ20mm/Φ25.4mm/Φ30mm/Φ50.8mm high quality
nitrogen
Aluminum single crystal substrate products, and can also provide
customers with 10-20mm non-polar
M-plane aluminum nitride single crystal substrate, or customize
non-standard 5mm-50.8mm to customers

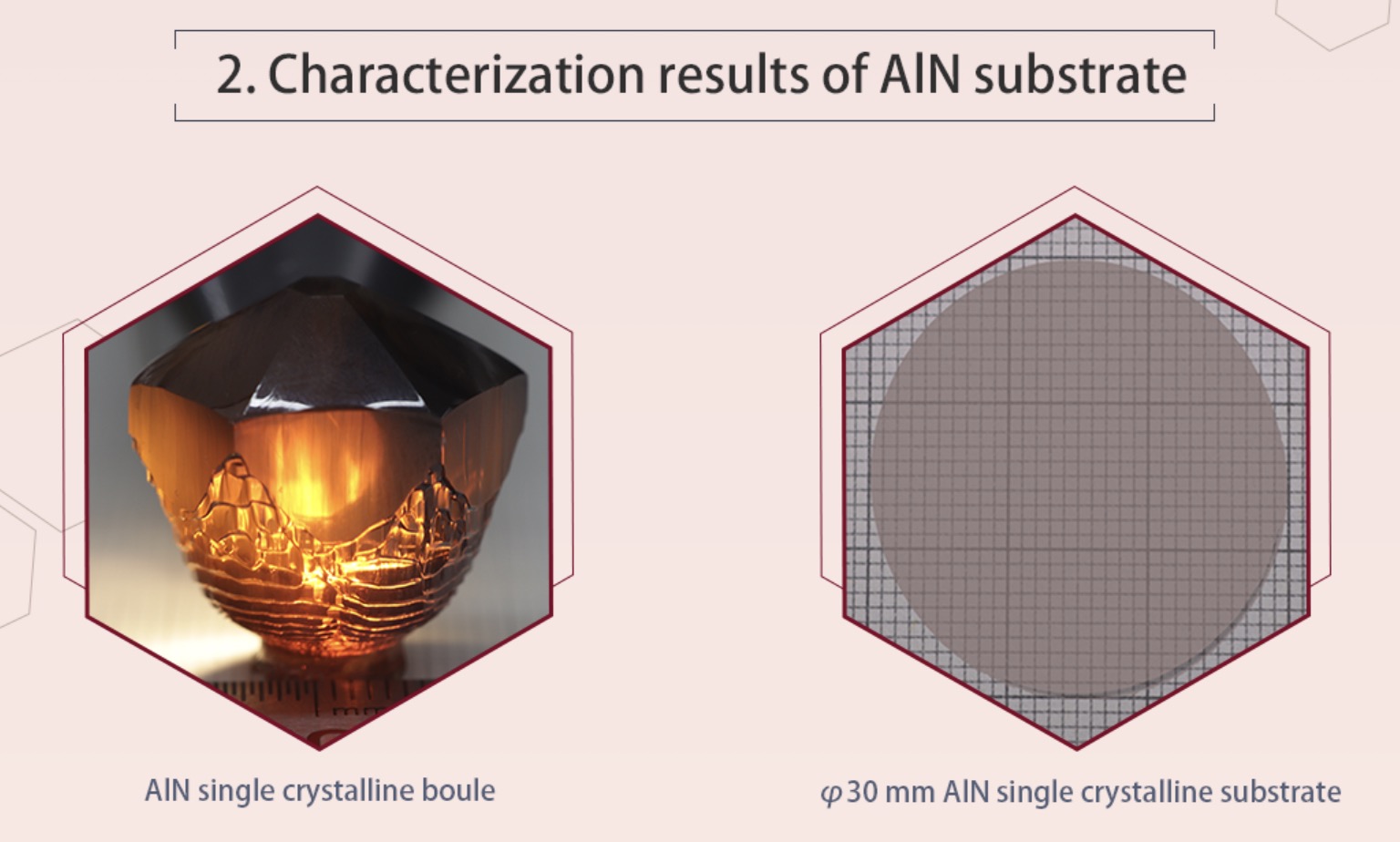

Polished aluminum nitride single crystal substrate. This product is
widely used as a high-end substrate material
Used in UVC-LED chips, UV detectors, UV lasers, and various high
power
/High temperature/high frequency electronic device field.
Characteristic Specification
- Model UTI-AlN-10x10B-single crystal
- Diameter 10x10±0.5mm ；
- Substrate thickness (µm) 400 ± 50
- Orientation C-axis [0001] +/- 0.5°
Quality Grade S-grade(super) P-grade(production) R-grade(Research)
- Cracks None None <3mm

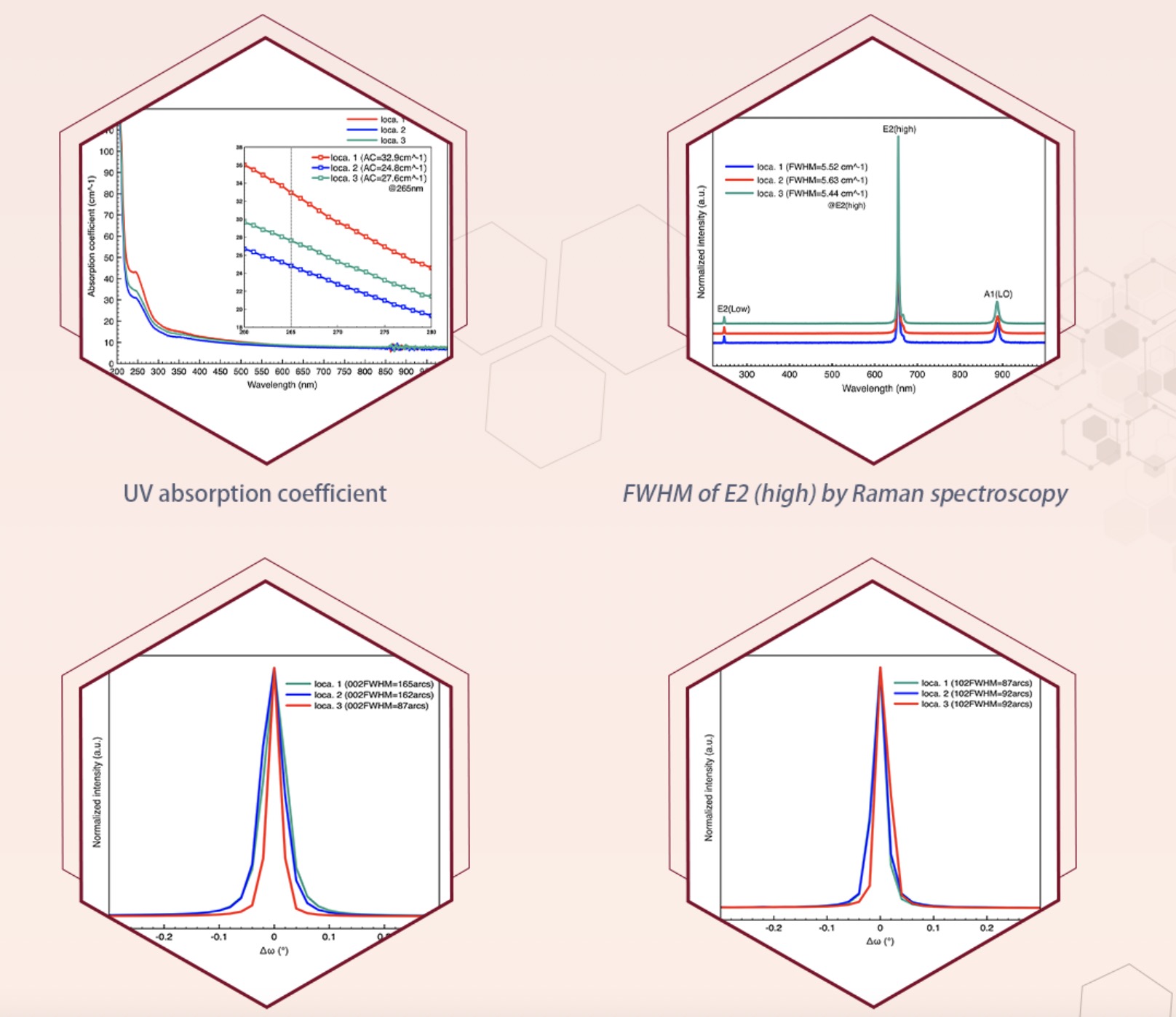

- FWHM-2θXRD@(0002) <150 <300 <500
- FWHM-HRXRD@(10-12) <100 <200 <400
- Surface Roughness [5×5µm] (nm) Al-face CMP <0.5nm; N-face(back surface) MP <1.2um;
- Usable area 90%
- Absorbance <50 ； <70 ； <100；
- 1st OF length orientation {10-10} ±5°；
- TTV (µm) ≤30
- Bow (µm) ≤30
- Warp (µm) -30~30
- Note: These characterization results may vary slightly depending on
the equipments and/or software employed
impurity element C O Si B Na W P S Ti Fe
PPMW 27 90 5.4 0.92 0.23 <0.1 <0.1 <0.5 0.46 <0.5
| Crystal structure | Wurtzite |
| Lattice constant (Å) | a=3.112, c=4.982 |
| Conduction band type | Direct bandgap |
| Density (g/cm3) | 3.23 |
| Surface microhardness (Knoop test) | 800 |
| Melting point (℃) | 2750 (10-100 bar in N2) |
| Thermal conductivity (W/m·K) | 320 |
| Band gap energy (eV) | 6.28 |
| Electron mobility (V·s/cm2) | 1100 |
| Electric breakdown field (MV/cm) | 11.7 |
