High-Temperature Transparent Sapphire Glass Crystal Test Quartz
Tube with Flange/Optical Polished Sapphire Glass Tube/High-quality
Sapphire tube & Sapphire Ring of various specification Open-end
tubes, Plugged tubes, Capillary tubes, Shaped tubes SAPPHIRE TUBE &
SAPPHIRE ROD Sapphire Tubes, Rods, Spheres & Special Shapes Single
Crystal Sapphire Tubes And Rods Grown Fine Ground And Polished
Surface
Sapphire tube | sapphire blue tube is a glass tube that is created
using sapphire, a synthetic stone with exceptional physical,
optical, and chemical qualities. sapphire, one of the hardest
minerals on earth, is suited for high-pressure systems and vacuum
environments due to its high melting point, great thermal
conductivity, and strong heat resistance. these characteristics
make sapphire ideal for a variety of applications. among them are
tools for analysis. additionally, it is a fantastic material for
studying optical data because it transmits visible light.
If you need to find suppliers and manufacturers of sapphire tubes
or windows, please contact us now.
Sapphire tube have several advantages, including their inherent
resistance to high temperatures and chemical environments. as a
result, they are ideal for a variety of analytical instruments.
they are capable of transmitting both visible and ultraviolet
light. furthermore, their high-quality optical properties make them
ideal for a wide range of applications. furthermore, sapphire tubes
can withstand high pressures and temperatures.
Typical Sapphire Tube Applications: guides, insulators, flow
control, spacers, sapphire cell
| Attribute | Specification |
| Material | Optical grade sapphire |
| Outer Diameter(mm) | 1.00~250.00 |
| Inner Diameter | >/=0.10mm |
| Surface Quality | 80/50~10/5 |
| Parallelism | <1arc min |
| Flatness (per 25mm@633nm) | <λ/10 |
| Bevel (face width x 45) | <0.25mm |
| general |
| chemical formula | al2o3 |
| crystal stucture | hexagonal system (hk o 1) |
| unit cell dimension | a=4.758 å,å c=12.991 å, c:a=2.730 |
| physical |
| metric | english (imperial) |
| density | 3.98 g/cc | 0.144 lb/in3 |
| hardness | 1525 – 2000 knoop, 9 mhos | 3700° f |
| melting point | 2310 k (2040° c) | |
| structural |
| tensile strength | 275 mpa to 400 mpa | 40,000 to 58,000 psi |
| tensile strength at 20° c | | 58,000 psi (design min.) |
| tensile strength at 500° c | | 40,000 psi (design min.) |
| tensile strength at 1000° c | 355 mpa | 52,000 psi (design min.) |
| flexural stength | 480 mpa to 895 mpa | 70,000 to 130,000 psi |
| compression strength | 2.0 gpa (ultimate) | 300,000 psi (ultimate) |
Sapphire's Mohs hardness is 9 (diamond is 10). It is the hardest
material next to diamonds. Until now, it's nearly impossible to
make a diamond tube as costing, difficulty processing. But ZMSH can
produce a sapphire tube with OD/ID polishing to optical grade.
Compared with traditional quartz tubes, ZMSH sapphire tubes are the
best high-pressure containers and transparent plumbing for many
high-pressure systems. A sapphire tube can handle extreme pressures
while allowing for safe observation and spectral analysis of fluids
and gas. Sapphire tubes can be used in hostile environments to
house sensitive sensors, protecting the sensors against pressure
and mechanical abuse.
SAPPHIRE TUBE DETAILS:
Recommend Products:

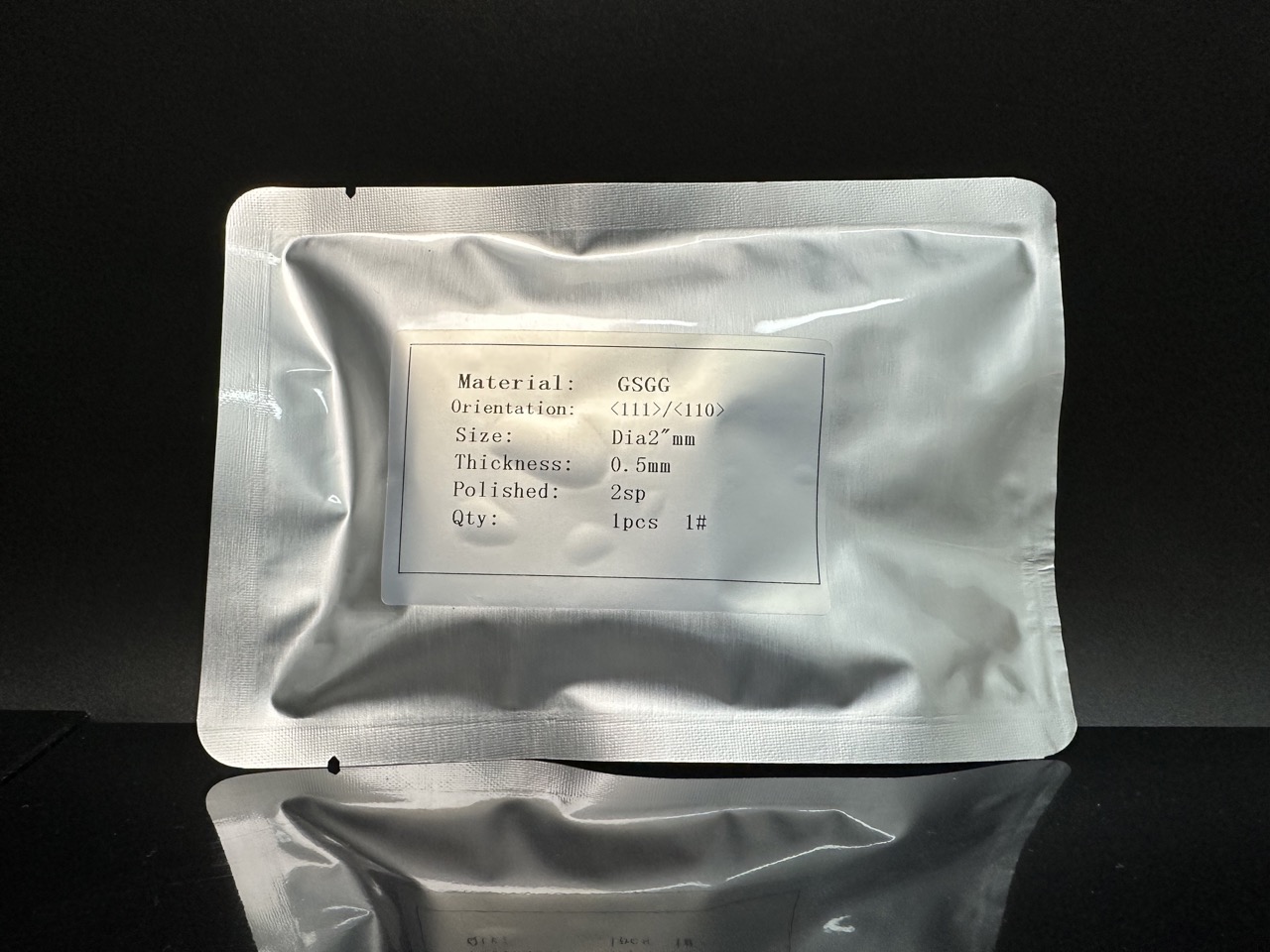

2inch GSGG 2inch YAG 2inch MgO
