6 Inch LiTaO3 LiNbO3 Wafer Black Polarized For SAW / BAW 128 Degrees Y Z-Cut

Ask Lasest Price
Brand Name :	ZMKJ
Model Number :	JZ-4INCH-LNOI
Certification :	ROHS
Price :	by case
Payment Terms :	T/T, Western Union, paypal
Supply Ability :	10pcs/month
Delivery Time :	4 weeks

Add to Cart

Product Details
Company Profile

6 Inch LiTaO3 LiNbO3 Wafer Black Polarized For SAW / BAW 128 Degrees Y Z-Cut

6 Inch LiTaO3 LiNbO3 Wafer Black Polarized For SAW / BAW Applications 128 Degrees Y Z-Cut

Lithium niobate (LiNbO3) single crystal is a ferroelectric crystal with high electromechanical coupling coefficient and low propagation loss, which can be used to fabricate SAW devices with up to 50% bandwidth. The acoustic surface wave properties of lithium niobate single crystal materials are closely related to their orientation and propagation direction. According to different cutting angles and propagation directions, the saw propagation velocity is 3400~4000m/s, the electromechanical coupling coefficient is 0%~5.6%, and the temperature coefficient is -1.1~-95.6(10^-6/℃).

Lithium tantalate (LiTaO3) has piezoelectric, electro-optical and nonlinear optical characteristics, and a wide transparency range going from ultraviolet to infrared. It is desirable that LiTaO3 wafer was a smooth surface in order to function with good quality. Chemical mechanical polishing (CMP) has been used to planarize integrated circuits (ICs) or obtain a high surface quality of the substrates. This paper investigates the effect of citric acid as an additive in the slurry for LiTaO3 CMP. The roughness of the wafers was measured by an atomic force microscopy (AFM, XE-100) after polishing. The slurry, which contains citric acid as an additive, has a higher material removal rate and friction force than a slurry without an additive. After polishing, the surface roughness of the LiTaO3 wafer can be reduced down to 1.7A of Ra.

Characteristic Specification

Crystal Sturucture	Trigonal, Space group R3c, Point group 3m
Melting Point	1253℃
Mohs Hardness	5
Density (g/cm3)	4.64
Deliquescence	None
Optical Homogeneity	~5x10-5/cm
Transparency Range	420-5200nm
Absorption Coefficient	~0.1%/cm @1064nm
Refractive Indices @1064nm	ne=2.146, no=2.220@1300nm ne=2.156, no=2.232@1064nm ne=2.203, no=2.286@632.8nm
Thermal Expansion Coefficients (at 25℃ )	//a,2.0x10-6/K //a,2.2x10-6/K
Thermal Conductivity Coefficients	38 W/m/K at 25℃
Thermal Optical Coefficients	dno/dT=-0.874 x 10-6/K at 1.4μm dne/dT=39.073 x 10-6/K at 1.4μm
The Sellmeier Equations (λ in μm)	no2=4.9048+0.11768/(λ2-0.04750)-0.027169λ2 ne2=4.5820+0.099169/(λ2-0.04443)-0.02195λ2

Material	3" 4" 6" LT wafer Saw/Optical grade
Orientation	X112°/Y28°/Y36°/Y42°/YZ or Customized
Curie Temp	605°C±3°C
Doped with	Fe
Single Domain	Completed Polarization / Reduced
Orientation	36°Y, 42°Y, X-112°Y, Y, Z
Diameter	76.2±0.2mm	100±0.2mm	150±0.2mm
Primary Flat	22±1mm	32±1mm	47.5mm, 57.5mm, Notch
Thickness	0.07mm~1.0mm	0.1mm~1.0mm	0.35mm~1.0mm
Surface finish	Single / Double side polish / Double side lapped
TTV	< 1~5µm
BOW	± (20µm ~40um )
Warp	<= 20µm ~ 50µm
LTV (5mmx5mm)	<1.5 um
PLTV(<0.5um)	≥98% (5mm*5mm) with 2mm edge excluded
Polished side Ra	Roughness Ra<=5A
Back Side Criteria	Roughness Ra:0.5-1.0µm, GC#1000
Scratch & Dig (S/D)	20/10, 40/20, 60/40
Edge Profile	Compl't with SEMI M1.2@with GC800# .regular at C typed
Cracks, saw marks, stains	None

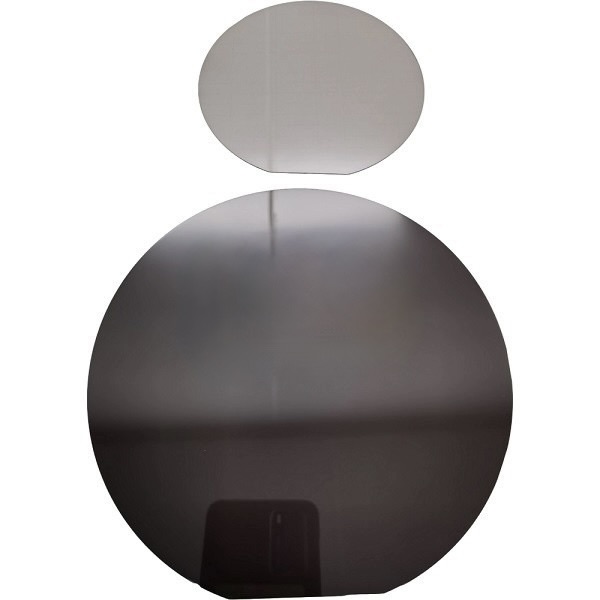

Display of LiTaO3 Wafer and LiNbO3

FAQ –
Q: What you can supply logistics and cost?
(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.
(2) If you have your own express number, it's great.
If not, we could assist you to deliver. Freight=USD25.0(the first weight) + USD12.0/kg
Q: How to pay?
T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance on Alibaba and etc..
Q: What's the MOQ?
(1) For inventory, the MOQ is 5pcs.
(2) For customized products, the MOQ is 5pcs-20pcs.
It depends on quantity and technics
Q: Do you have inspection report for material?
We can supply detail report for our products.
Packaging – Logistics
we are concerned with each detail of the package, cleaning, anti-static, and shock treatment. According to the quantity and shape of the product,
we will take a different packaging process!
