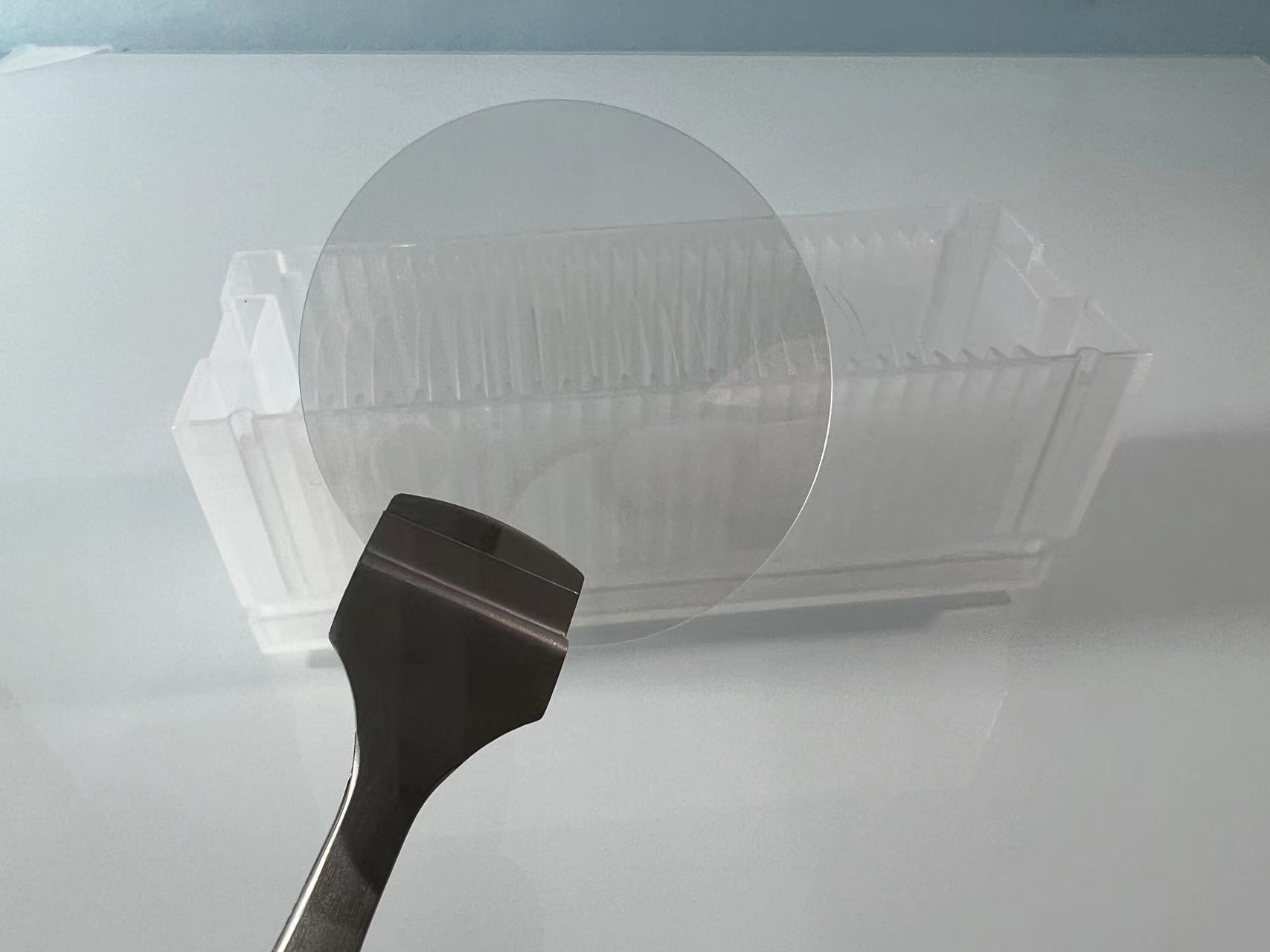

    2inch 4inch 6inch Sapphire Wafer Substrate Single Crystal C Miscut A Degree M Plane

    Ask Lasest Price
    Brand Name : zmkj
    Model Number : C-axis M-axis carrier sapphire wafer
    Certification : ROHS
    Price : by case
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    2inch 4inch 6inch Sapphire Wafer Substrate Single Crystal C Miscut A Degree M Plane

    2inch 4inch 6inch Sapphire Wafer Substrate Single Crystal C Miscut A Degree M Plane

    TTV<3um 4.125inch/6inch/6.125inch/dia159mm R-axis sapphire Carrier wafers

    About synthetic sapphire crystal

    The Kyropoulos process (KY process) for sapphire crystal growth is currently used by many companies in China to produce sapphire for the electronics and optics industries.
    High-purity, aluminum oxide is melted in a crucible at over 2100 degrees Celsius. Typically the crucible is made of tungsten or molybdenum. A precisely oriented seed crystal is dipped into the molten alumina. The seed crystal is slowly pulled upwards and may be rotated simultaneously. By precisely controlling the temperature gradients, rate of pulling, and rate of temperature decrease, it is possible to produce a large, single-crystal, roughly cylindrical ingot from the melt.
    After single crystal sapphire boules are grown, they are core-drilled into cylindrical rods, The rods are sliced up into the desired window thickness and finally polished to the desired surface finish.

    Use as substrate for semiconducting circuits
    Thin sapphire wafers were the first successful use of an insulating substrate upon which to deposit silicon to make the integrated circuits known as silicon on sapphire or "SOS", Besides its excellent electrical insulating properties, sapphire has high thermal conductivity. CMOS chips on sapphire are especially useful for high-power radio-frequency (RF) applications such as those found in cellular telephones, public-safety band radios, and satellite communication systems.
    Wafers of single-crystal sapphire are also used in the semiconductor industry as substrates for the growth of devices based on gallium nitride (GaN). The use of sapphire significantly reduces the cost, because it has about one-seventh the cost of germanium. Gallium nitride on sapphire is commonly used in blue light-emitting diodes (LEDs).


    Used as a window material
    Synthetic sapphire (sometimes referred to as sapphire glass) is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant. The key benefits of sapphire windows are:
    * Very wide optical transmission band from UV to near-infrared
    * Significantly stronger than other optical materials or glass windows
    * Highly resistant to scratching and abrasion (9 on the Mohs scale of mineral hardness scale, the 3rd hardest natural substance next to moissanite and diamonds)
    * Extremely high melting temperature (2030 °C)

    CATALOGU & Stcok List

    Standard wafer

    2 inch C-plane sapphire wafer SSP/DSP
    3 inch C-plane sapphire wafer SSP/DSP
    4 inch C-plane sapphire wafer SSP/DSP
    6 inch C-plane sapphire wafer SSP/DSP
    Special Cut
    A-plane (1120) sapphire wafer
    R-plane (1102) sapphire wafer
    M-plane (1010) sapphire wafer
    N-plane (1123) sapphire wafer
    C-axis with a 0.5°~ 4° offcut, toward A-axis or M-axis
    Other customized orientation
    Customized Size
    10*10mm sapphire wafer
    20*20mm sapphire wafer
    Ultra thin (100um) sapphire wafer
    8 inch sapphire wafer

    Patterned Sapphire Substrate (PSS)
    2 inch C-plane PSS
    4 inch C-plane PSS

    2inch

    DSP C-AXIS 0.1mm/ 0.175mm/0.2mm/0.3mm/0.4mm/0.5mm/1.0mmt

    SSP C-axis 0.2/0.43mm

    (DSP&SSP) A-axis/M-axis/R-axis 0.43mm


    3inch

    DSP/ SSP C-axis 0.43mm/0.5mm


    4Inch

    dsp c-axis 0.4mm/ 0.5mm/1.0mm

    ssp c-axis 0.5mm/0.65mm/1.0mmt


    6inch

    ssp c-axis 1.0mm/1.3mmm


    dsp c-axis 0.65mm/ 0.8mm/1.0mmt
