    Optical Polished Sapphire Glass Tube Cylinder Lens Tube / Rod High Temperature

    Ask Lasest Price
    Brand Name : zmkj
    Model Number : sapphire tube
    Price : by case
    Payment Terms : T/T, Western Union
    Supply Ability : 3000pcs per month
    Delivery Time : 1-2weeks
    • Product Details
    • Company Profile

    Optical Polished Sapphire Glass Tube Cylinder Lens Tube / Rod High Temperature

    Advanced Custom Sapphire Shaped Glass Tube For Medical Laboratory Utensils/High Temperture Transparent Sapphire Glass Crystal Test Quartz Tube with Flange/Optical Polished Sapphire Glass Tube/High quality Sapphire tube & Sapphire Ring of various specification


    Sapphire Tube (Optical Grade) with Many Size Used to Protective Tube,Insulating Tube, and Flow Control

    A sapphire tube can handle extreme pressures while allowing for safe observation and spectral analysis of fluids and gasses.


    Product nameSapphire tube
    Diameter0.5-500mmd
    Tolerance+0/-0.05mm
    ThicknessCustomization
    LengthCustomization
    Clear Aperture>90%
    Surface quality
    60/40
    ApplicationResearch and Semiconductor
    UsageUV and IR lamp
    PackingCarton or as per customer's requirements

    Special specifications can also be produced according to drawing and sample.


    Feature

    1. High hardness - 9H
    2. Scratch resistance
    3. Abrasion resistance
    4. High mechanical strength
    5. High temperature resistance
    6. Good thermal stability
    7. High optical production rate

    Sapphire, which is the second hardest crystal, features a variety of attributes that are ideal for use in harsh environments, including extreme surface hardness, high thermal conductivity, high dielectric constant, as well as a strong resistance to a variety of chemical acids or alkalis. Compared to many standard optical materials, Sapphire Optical Components offer thinner designs, along with transmission ranges from 0.15 – 5.5μm for optimum performance in the ultraviolet to the MWIR.

    Sapphire Optical Components are used in a variety of applications requiring high durability or broad spectral ranges, including semiconductor, FTIR spectroscopy, or FLIR imaging.


    GENERAL
    Chemical Formula
    Al2O3
    Crystal Stucture
    Hexagonal System (hk o 1)
    Unit Cell Dimension
    a=4.758 Å,Å c=12.991 Å, c:a=2.730
    PHYSICAL
    Metric
    English (Imperial)
    Density
    3.98 g/cc
    0.144 lb/in3
    Hardness
    1525 - 2000 Knoop, 9 mhos
    3700° F
    Melting Point
    2310 K (2040° C)
    STRUCTURAL
    Tensile Strength
    275 MPa to 400 MPa
    40,000 to 58,000 psi
    Tensile Strength at 20° C
    58,000 psi (design min.)
    Tensile Strength at 500° C
    40,000 psi (design min.)
    Tensile Strength at 1000° C
    355 MPa
    52,000 psi (design min.)
    Flexural Stength
    480 MPa to 895 MPa
    70,000 to 130,000 psi
    Compression Strength
    2.0 GPa (ultimate)
    300,000 psi (ultimate)

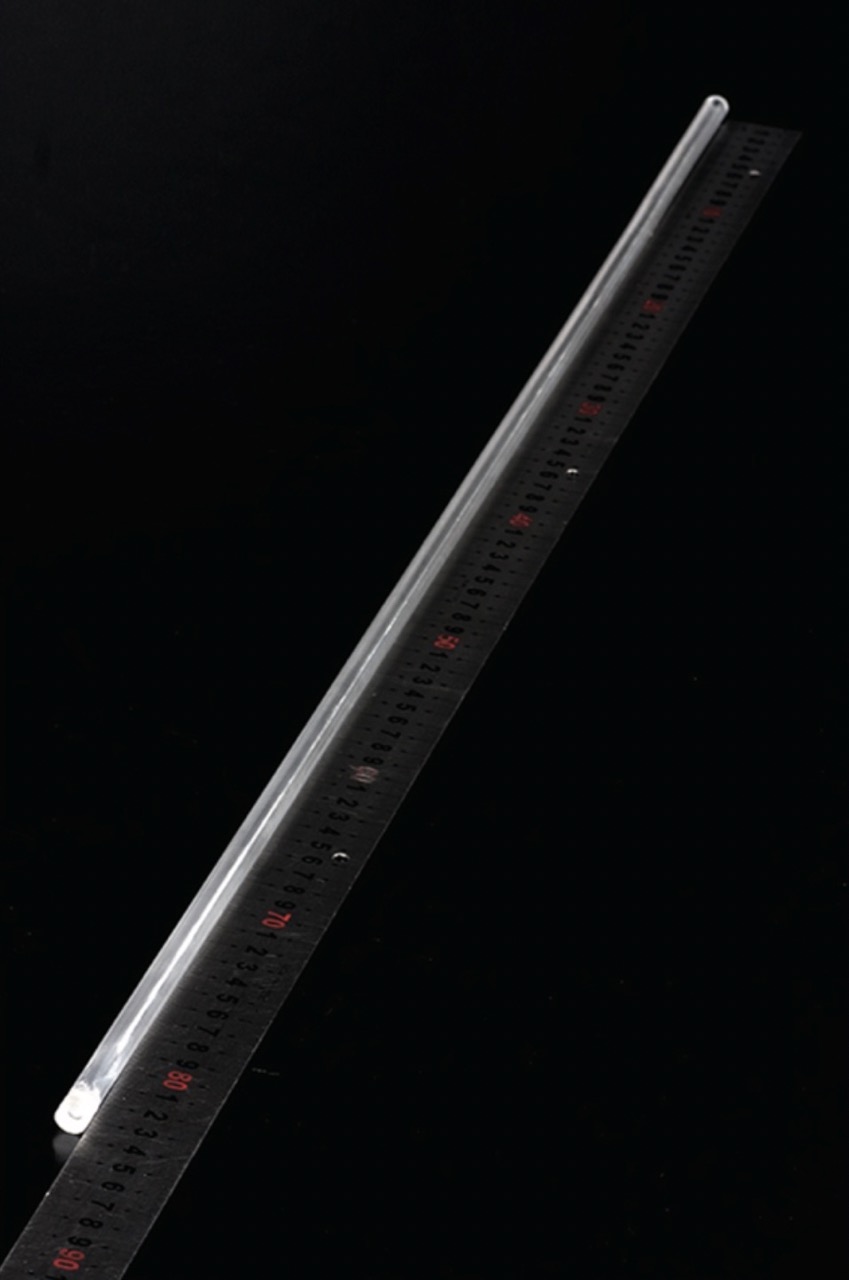

    Sapphire parts products in detail

    Recommend Products

    FAQ
    Q: How to pay?
    A: T/T, Paypal, Secure payment and Assurance payment.

    Q: What's your MOQ?
    A: (1) For inventory, the MOQ is 1pcs.
    (2) For customized products, the MOQ is 3pcs up.

    Q: What's the delivery time?
    A: (1) For the standard products
    For inventory: the delivery is 5 workdays after you place the order.
    For customized products: the delivery is 2 -4 weeks after you order contact.
