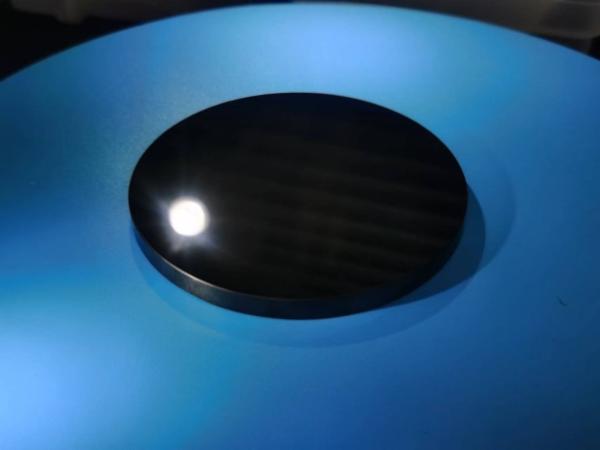

2 / 3 / 4 / 6inch Silicon Carbide Wafer 4H-N / Semi Type SiC Ingots Industrial

Product Categories

Sapphire Substrate [89]
Synthetic Gem Stone [75]
Sapphire Optical Windows [86]
Silicon Carbide Wafer [104]
Sapphire Tube [62]
Gallium Nitride Wafer [25]
Semiconductor Substrate [103]
Scientific Lab Equipment [50]
Sapphire Crystal Watch Case [19]
Wafer Carrier Box [14]
Superconducting Thin Monocrystalline Substrate [13]
Ceramic Parts [7]

SHANGHAI FAMOUS TRADE CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Semi Type SiC Ingots Industrial

Ask Lasest Price
Brand Name :	ZMKJ
Model Number :	4inch SiC Bulks
Price :	by case
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1-50pcs/month
Delivery Time :	2-5weeks

Add to Cart

Product Details
Company Profile

2 / 3 / 4 / 6inch Silicon Carbide Wafer 4H-N / Semi Type SiC Ingots Industrial

High Quality Silicon-on-Insulator Wafers SIC Silicon Carbide Wafers Customized High quality high precision Dia.700mm Sic spherical Mirror metal optical reflector Customized High quality Dia.500mm silver-plated spherical reflector metal optical reflector 2inch/3inch/4inch/6inch/8inch 6H-N/4H-SEMI/ 4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers,

Products Description

Product Name	Metal Plane Mirror
Material	Monocrystalline Silicon
Diameter	500mm
Surface Quality	60-40
Surface Accuracy	PV:1/4 Lambda; RMS:1/30 Lambda
Coating	Reflectivity>90% Coating Film:@200-1100nm
Application	Reflecting System

Description of SIC Wafer

Property	4H-SiC, Single Crystal	6H-SiC, Single Crystal
Lattice Parameters	a=3.076 Å c=10.053 Å	a=3.073 Å c=15.117 Å
Stacking Sequence	ABCB	ABCACB
Mohs Hardness	≈9.2	≈9.2
Density	3.21 g/cm3	3.21 g/cm3
Therm. Expansion Coefficient	4-5×10-6/K	4-5×10-6/K
Refraction Index @750nm	no = 2.61 ne = 2.66	no = 2.60 ne = 2.65
Dielectric Constant	c~9.66	c~9.66
Thermal Conductivity (N-type, 0.02 ohm.cm)	a~4.2 W/cm·K@298K c~3.7 W/cm·K@298K
Thermal Conductivity (Semi-insulating)	a~4.9 W/cm·K@298K c~3.9 W/cm·K@298K	a~4.6 W/cm·K@298K c~3.2 W/cm·K@298K
Band-gap	3.23 eV	3.02 eV
Break-Down Electrical Field	3-5×106V/cm	3-5×106V/cm
Saturation Drift Velocity	2.0×105m/s	2.0×105m/s

Catalog Commen Size

4H-N Type / High Purity SiC wafer/ingots 2 inch 4H N-Type SiC wafer/ingots 3 inch 4H N-Type SiC wafer 4 inch 4H N-Type SiC wafer/ingots 6 inch 4H N-Type SiC wafer/ingots	4H Semi-insulating / High Purity SiC wafer 2 inch 4H Semi-insulating SiC wafer 3 inch 4H Semi-insulating SiC wafer 4 inch 4H Semi-insulating SiC wafer 6 inch 4H Semi-insulating SiC wafer
6H N-Type SiC wafer 2 inch 6H N-Type SiC wafer/ingot	Customzied size for 2-6inch

Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the
important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power
LEDs.

Properties	unit	Silicon	SiC	GaN
Bandgap width	eV	1.12	3.26	3.41
Breakdown field	MV/cm	0.23	2.2	3.3
Electron mobility	cm^2/Vs	1400	950	1500
Drift valocity	10^7 cm/s	1	2.7	2.5
Thermal conductivity	W/cmK	1.5	3.8	1.3

About SiC seed crystal ingot detail

About ZMKJ Company

ZMKJ can provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2-6 inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .

FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them and

Freight is in accordance with the actual settlement.

Q: How to pay?

A: T/T 100％ deposit before delivery.

Q: What's your MOQ?

A: (1) For inventory, the MOQ is 1pcs. if 2-5pcs it's better.

(2) For customized commen products, the MOQ is 10pcs up.

Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.

Q: Do you have standard products?

A: Our standard products in stock. as like substrates 4inch 0.35mm.
