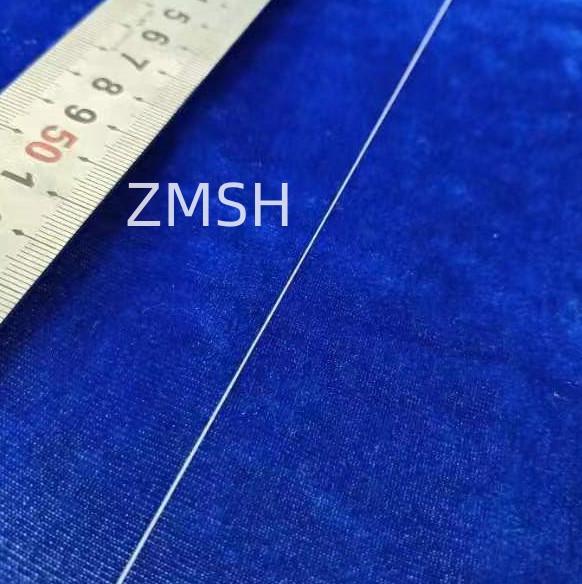

Sapphire Fiber Description:

Sapphire Fiber is a unique type of optical fiber material made from single-crystal α-alumina (Al2O3). It exhibits excellent performance under high temperatures, harsh chemical environments, and high radiation conditions, making it an ideal choice for various industrial applications, especially in environments where conventional optical fibers fall short.
Key features of Sapphire Fiber include:
High-temperature stability: Sapphire Fiber can operate stably for prolonged periods at temperatures exceeding 2000°C without compromising its structure or optical properties.
Chemical stability: It is highly resistant to most chemical substances and corrosive environments.
Mechanical strength: It boasts high tensile and bending strengths.
Broad transparency range: Sapphire Fiber has good transparency across a wide wavelength range, from ultraviolet to mid-infrared.
High radiation resistance: Suitable for environments with high radiation, such as nuclear power plants or space applications.
Given these characteristics, Sapphire Fiber holds great potential in various applications, including high-temperature sensing, medical imaging, military, and space applications.

Sapphire Fiber Features:

• Product Name: Sapphire fiber
• Mechanical Strength: High Tensile And Bending Strength
• Loss@1550nm: 1.59dB/m
• Diameter: 25-500um
• Refractive Index: Typically Around 1.76 (at 589 Nm)

Sapphire Fiber Technical Parameters:

Sapphire Fiber Applications:

1. High-temperature sensing: Sapphire fiber maintains its performance even at extremely high temperatures, making it frequently used for fiber optic sensors in high-temperature environments, such as temperature monitoring in industrial furnaces.
2. Corrosive environment sensing: Sapphire fiber possesses exceptional chemical corrosion resistance. Therefore, in environments with strong corrosivity, sapphire fibers can provide reliable data transmission for sensors.
3. Medical applications: Due to its biocompatibility and chemical stability, sapphire fiber is used in certain medical applications, such as endoscopes or laser surgeries.
4. Laser transmission: The excellent optical properties of sapphire make it an ideal medium for the transmission of high-power or specialized wavelength lasers.
5. Research applications: In certain high-end research applications, like nuclear reactors or high-energy physics experiments, sapphire fibers are chosen for their high radiation resistance and stability under extreme conditions.
6. Optical communication: Although conventional optical communication primarily uses quartz fibers, sapphire fibers may be selected for certain special environments or applications.

Sapphire Fiber Advantages:

1. Chemical Resistance: Compared to other optical fiber materials, sapphire exhibits excellent resistance to chemical corrosion, allowing it to work reliably in harsh chemical environments.
2. Biocompatibility: Sapphire fiber is safe for human contact, giving it an advantage in medical applications.
3. Optical Properties: Sapphire fiber offers excellent optical transparency and low optical losses.
4. Radiation Resistance: In radioactive environments, sapphire fiber experiences significantly less performance degradation compared to other optical fibers.
5. Mechanical Strength: Due to sapphire's hardness, second only to diamond, sapphire fiber has high compressive and tensile strength.
6. Broadband Capability: Sapphire fiber can operate over a wide range of wavelengths, from ultraviolet to near-infrared.
7. Thermal Conductivity: Compared to other optical fibers, sapphire fiber has higher thermal conductivity, making it excel in applications that require efficient heat dissipation.

Customization:

Brand Name: ZMSH
Model Number: Sapphire fiber
Place of Origin: China
Mechanical Strength: High Tensile And Bending Strength
Name: Sapphire Fiber
Core Cladding Structure: Typically A Single Material, No Cladding
Diameter: 25-500um
Strength of Extension: ~3300Mpa
ZMSH provides customized sapphire product in various sizes, including 2inch, 4inch, and 6inch. Our sapphire windows are available in C-plane, M-plane, and A-plane. Our sapphire fibers are of excellent quality, with high tensile and bending strength and an extension strength of ~3300Mpa.
